Cleaning of ceramic substrates and hybrids
As a manufacturer and system supplier kolb provides for the cleaning of ceramic substrates and hybrids the complete process from a single source: including machinery, accessories, cleaners and specially applied software controlled fully automated electronic processes.

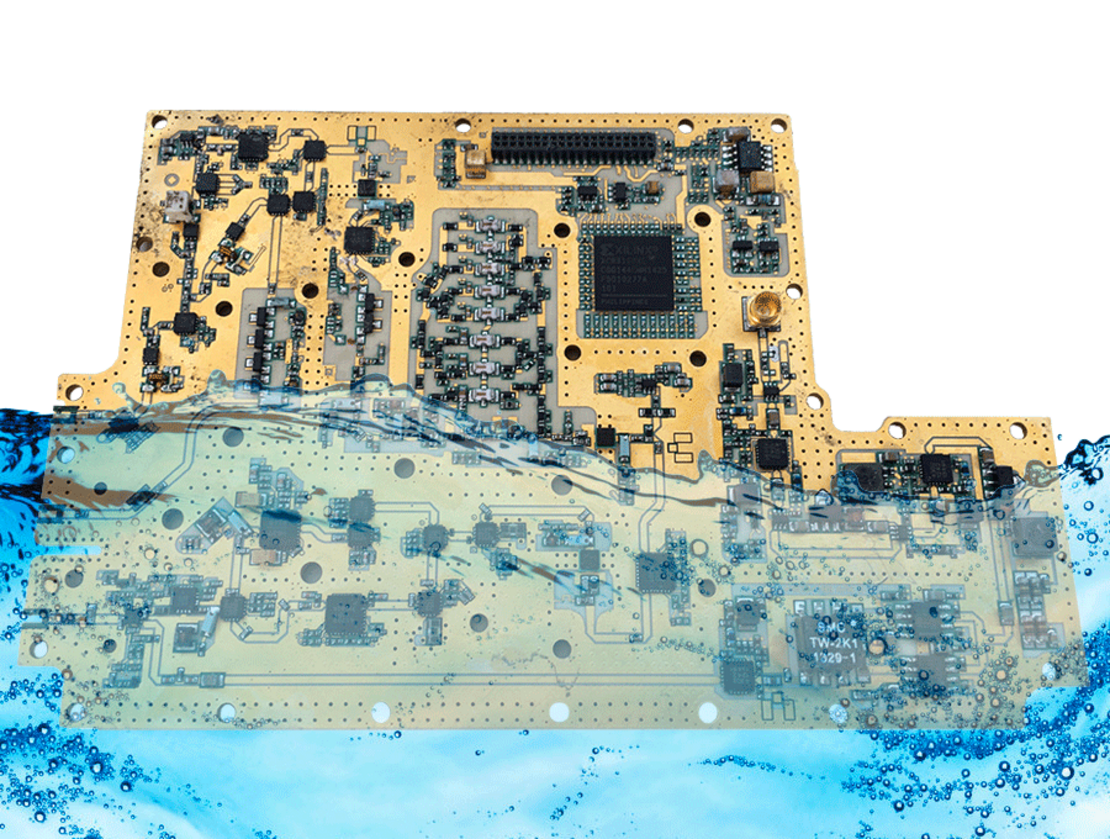

The trend towards miniaturization while increasing the reliability and operation of electronics in high temperature environments has driven the development of ceramic substrates. Ceramic substrates are mainly used for high performance electronic ceramic circuit boardswithe High Temperature Co-Fired Ceramics (HTCC) technology (usually made of aluminum oxide) and / or with Low Temperature Co-Fired Ceramics (LTCC) technology (usually made of glass ceramics). Ceramics as materials are intended to make the electronics thermally stable.
High temperature applications in the automotive industry, particularly reliable medical applications and high-frequency modules for wireless communication needs are just a few areas of application of this often multi-layered laminated components. Precisely because of their complexity, their value and sensitive areas of application, they must be absolutely free of production residues for further work processes such as wire bonding, coating or varnishing.
The thorough removal of flux residues, colophony, resin, oxides and soldering materials are the main tasks when cleaning ceramic substrates, PCB assemblies, DCBs and hybrids so that for any following production step process-safe products can be provided.
Suitable cleaning systems
AQUBE® LH5

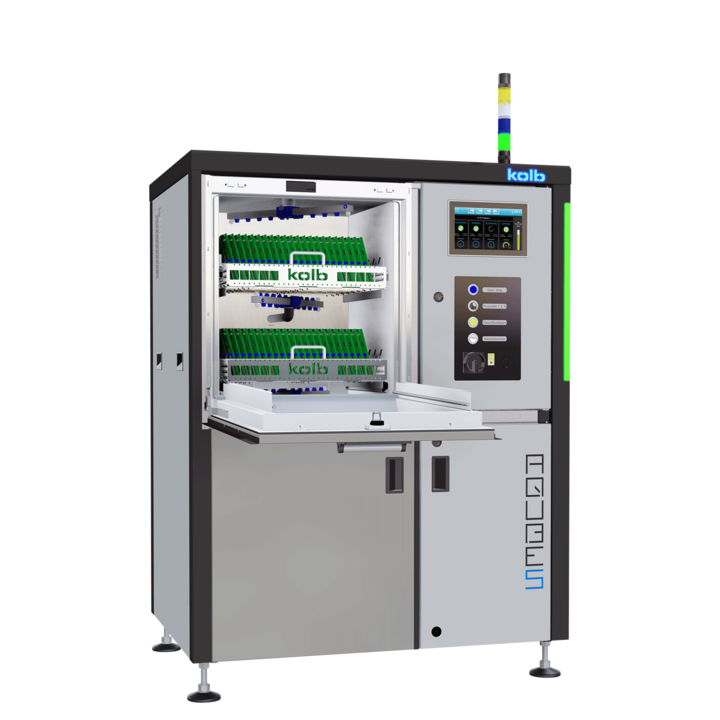

Fully automatic standard assembled PCBs batch cleaner
Capacity: up to 176 (2.8 m² / 30 ft²) eurocards in up to two variable drawer basketsHorizontal up to fourfold spray rotors, VMH®-TurboDigital evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")
more about AQUBE® LH5
AQUBE® LH7

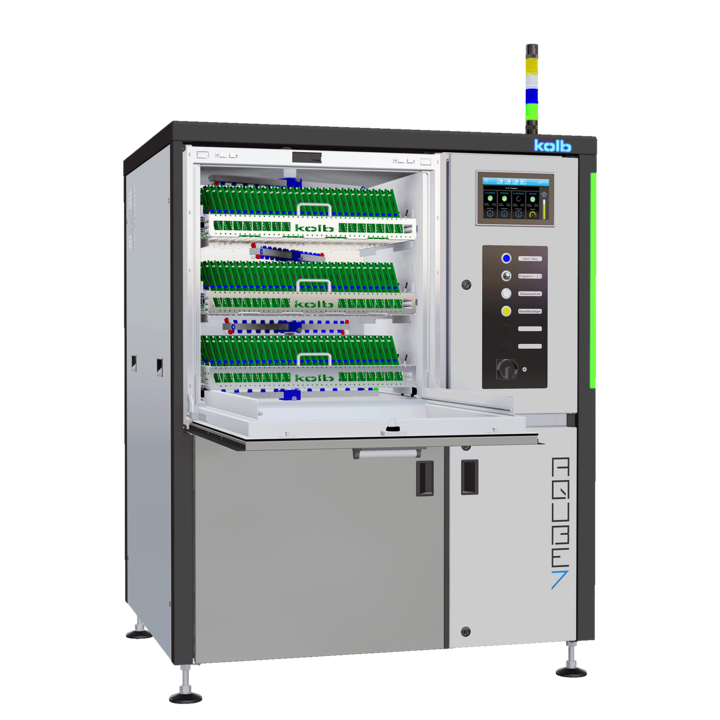

Fully automatic state of the art PCB XL batch cleaner
Capacity: up to 540 (8.6 m² / 92.5 ft²) eurocards in up to three variable drawer basketsHorizontal up to sixfold spray rotors, VMH®-TurboDigital evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® LH7
AQUBE® XH5
Fully automatic high end assembled PCBs batch cleaner
Capacity: up to 176 (2.8 m²/30 ft²) eurocards in up to two variable drawer basketsPolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Horizontal up to fourfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")
more about AQUBE® XH5
AQUBE® XH7
Fully automatic high end XL batch cleaner for assembled PCBs
Capacity: up to 540 (8.6 m² / 92.5 ft²) eurocard in up to three variable drawer basketsPolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Horizontal up to sixfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® XH7
AQUBE® XH9
Fully automatic high end batch cleaner with largest process chamber worldwide
Capacity: up to 830 equals 19 m² (204.5 ft²) in up to four variable drawer basketsHorizontal up to eightfold spray rotors, VMH®-TurboDigital evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® XH9
Suitable detergents
MultiEx® 3D-A3
Standard broadband DCB (also PCBA) cleaner
Removes copper oxides / CuO, aluminium oxides, SMD paste, fluxes, solder pastes (soldered) from DCBs, PCBAs, ceramic substrates, aluminium, non-ferrous metals.
MultiEx® 3D-A3
MultiEx® 3D-B1
Special cleaner for DCBs and power electronics
Removes copper oxides / CuO, aluminium oxides, solder paste, fluxes, from DCBs, PCBAs, ceramic substrates, aluminium, non-ferrous metals.
MultiEx® 3D-B1
MultiEx® 3D-H2
MultiEx® 3D-H2 cleans assembled PCBs, ceramic substrates, misprints (mounted) and also DCBs
Removes SMD paste, rosin flux, fluxes, copper oxides / CuO, aluminium oxides from PCBAs, DCBs, ceramic substrates, aluminium, non-ferrous metals.
MultiEx® 3D-H2
MultiEx® VR-18
Single phase special cleaner for hard to clean fluxes on PCBAs
Removes especially hard to clean fluxes from PCBAs ceramic substrates, misprints, stencils, solder carriers and pallets, ESD boxes, PCB magazines.
MultiEx® VR-18
MultiEx® VR-HPA
Highend broadband cleaner for PCBAs with sensitive components
Removes fluxes and pastes especially from PCBAs with sensitive components, from ceramic substrates, misprints, stencils, solder carriers, solder pallets, ESD boxes, PCB magazines.
MultiEx® VR-HPA
MultiEx® VR-SP
High end broadband detergent for PCBAs and many more
Removes all commercially available fluxes and pastes from assembled PCBs, ceramic substrates, misprints, stencils, solder carriers, solder pallets, ESD boxes, PCB magazines.
MultiEx® VR-SP
MultiEx® NP-1
Multifunctional pH-neutral detergent especially for PCBAs and power electronics
Aqueous, pH-neutral broadband cleaner especially for PCBAs and power electronics for the removal of flux and solder pastes.
MultiEx® NP-1
MultiEx® Rapid
Intensive lux remover
Detergent concentrate that removes particularly flux residues quickly, thoroughly and with best possible product care from assembled PCBs.
MultiEx® Rapid
