AQUBE® L series
For process safe fine cleaning of assembled PCBs and hybrids

The new kolb AQUBE® systems are next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready).

The systems of the kolb AQUBE® L series offer process safe fine cleaning for PCBs, SiPs, HDI boards, hybrids and misprints from contaminations such as fluxes, rosin, resin, copper, Cu oxide and aggressive solder-support substances. AQUBE® L systems clean up to 830 (19 m²) eurocards in four variable horizontal drawer baskets (relative cleaning time per board: approx. 6.5 seconds).

The two tank systems with three separate circuits and a fully automatic up to 4step process (1. Cleaning,  2. Rinsing (tap water), 3. DI-rinsing with continuous DI-water processing, 4. Drying) are extremely compact delivering best cost of ownership value.

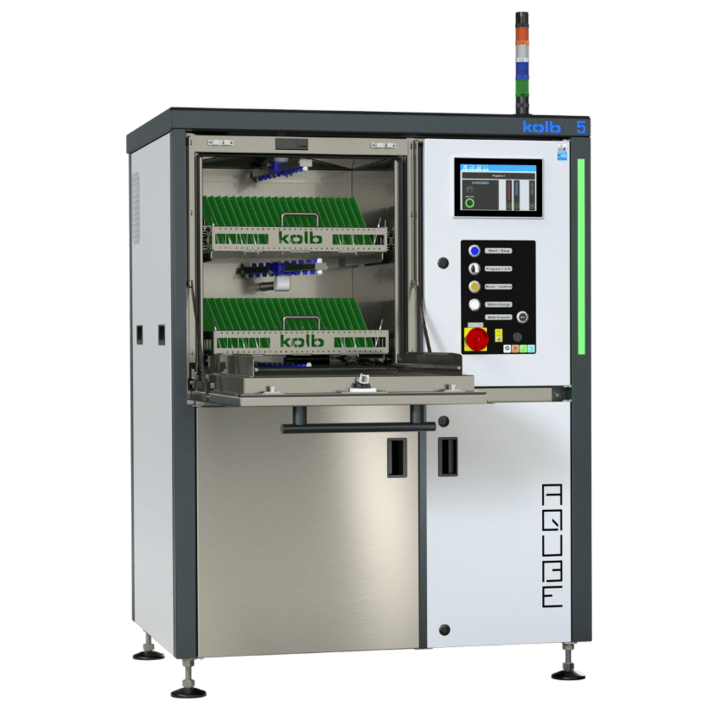

Front view of the economy ultra-fine cleaning system PSE LH5 by kolb for PCBAs

AQUBE® LH5
Fully automatic standard ultra-fine cleaning system for assemblies/PCBAs

Capacity: up to 176 (2.8 m² / 30 ft²) standard eurocards in up to two variable drawer baskets
Horizontal up to fourfold spray rotors, VMH-TurboDigital evaporative drying
PolyPower Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")

more about AQUBE® LH5

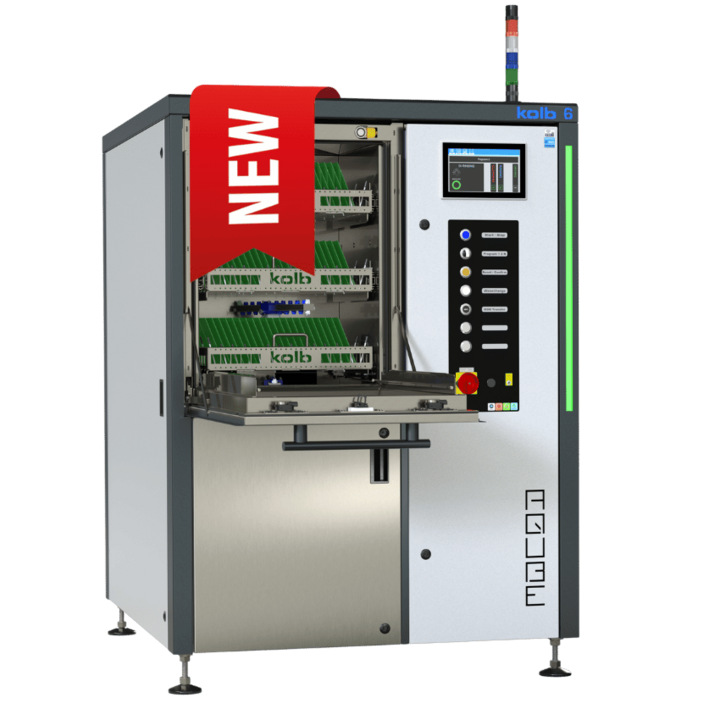

Front view of the ultra-fine cleaning system AQUBE XH-LH6 by kolb for PCBAs and misprints

AQUBE® LH6
Fully automatic ultra-fine cleaning system for assemblies/printed circuit boards

Capacity: up to 246 (3.9 m² /41.9 ft²) eurocards in up to three variable drawer baskets
Horizontal PTFE-mounted rotor system with up to six ASYNCHRO spray rotors for thorough wetting (no blind spots)
PolyPower Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 540• D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")

more about AQUBE® LH6
Front view of the ultra-fine cleaning system AQUBE XH-LH7 by kolb for PCBAs and misprints

AQUBE® LH7
Fully automatic standard ultra-fine cleaning system for assemblies/printed circuit boards

Capacity: up to 522 (8.4 m²/90.4 ft²) standard eurocards in up to three variable drawer baskets
Horizontal up to sixfold spray rotors, VMH TurboDigital evaporative drying
PolyPower Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")

more about AQUBE® LH7
