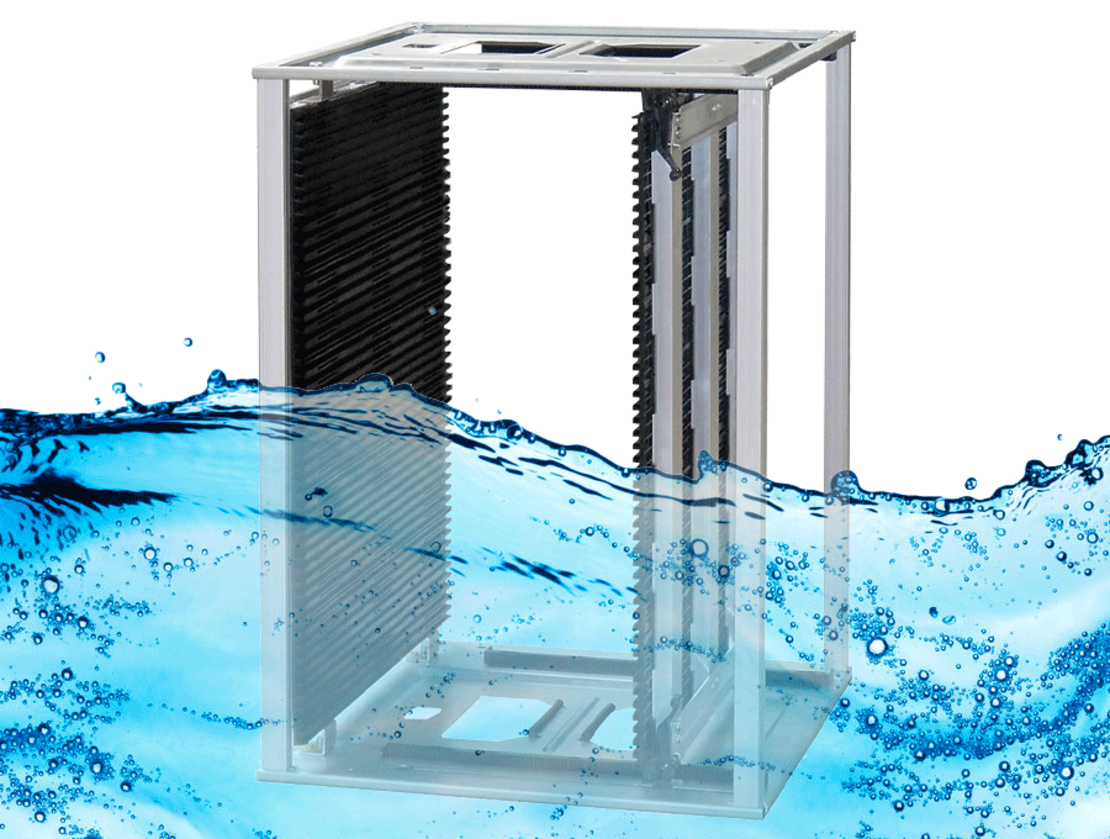

Cleaning of ESD boxes, containers, PCB magazines and racks

Racks and boxes cleaning

As a manufacturer and system supplier kolb provides for the cleaning of  ESD boxes, PCB storage containers, magazines and racks etc. the complete process from a single source: including machinery, accessories, detergents and specially applied, software controlled, fully automated electronic processes.

ESD boxes, storage containers, magazines and racks etc. for the transport and storage of PCBs / assembled PCBs, bare boards or wafers need to be cleaned regularly and thoroughly to avoid secondary contamination of sensitive components and areas.

Mainly dust, grease and oil but also paste, adhesive, colophony residues and even solder residues must be cleaned-off.

Suitable cleaning systems


PSE MH5
Economy tools cleaning system especially for solder carriers, pallets, trays

Capacity: 7 carriers up to 480 x 430 mm (19“ x 17“), boxes / racks up to 540 x 590 x 570 mm or up to two drawer baskets for small parts, filters etc.
Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")

more about PSE MH5

PSE MH7
Fully automatic XL tools and maintenance economy cleaning system

Capacity: 11 carriers up to 670 x 640 mm (26“ x 25“), boxes / racks up to 700 x 720 x 710 mm or up to three drawer baskets for small parts, filters etc.
Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")

more about PSE MH7

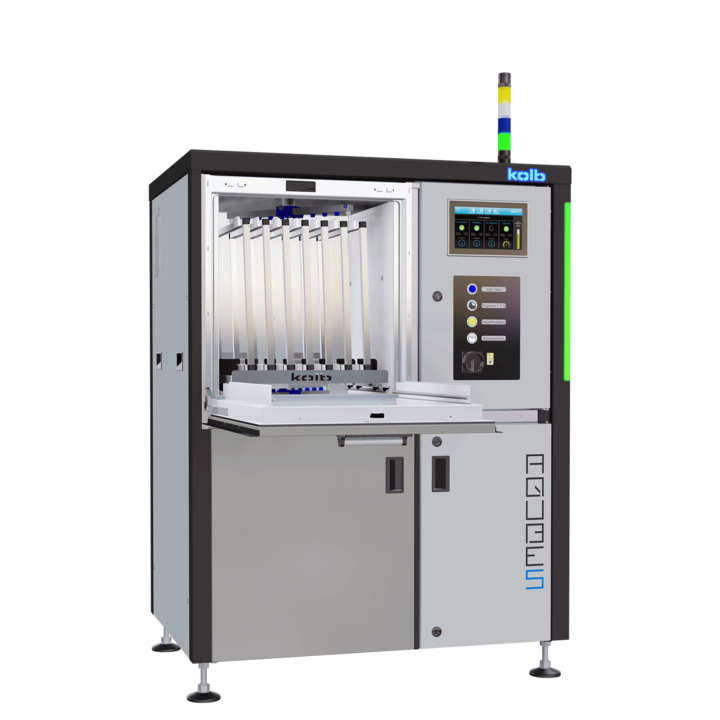

AQUBE® MH5
Tools cleaning system especially for solder carriers, pallets, trays

Capacity: 7 carriers up to 480 x 430 mm (19“ x 17“), boxes / racks up to 540 x 590 x 570 mm or up to two drawer baskets for small parts, filters etc.
Horizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 540 ▪ D 590 ▪ H 570 mm (W 21.25" ▪ D 23.22" ▪ H 22.44")

more about AQUBE® MH5

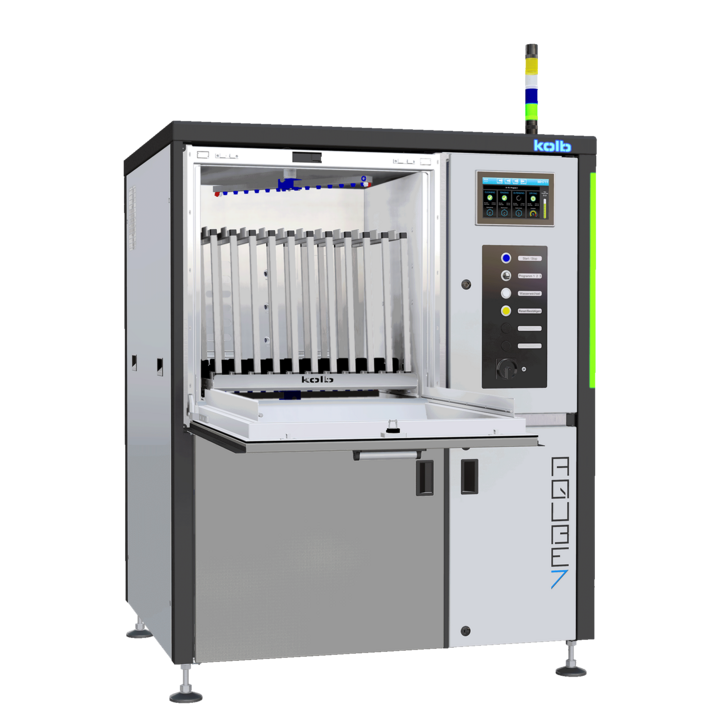

AQUBE® MH7
Fully automatic XL tools and maintenance cleaning system

Capacity: 11 carriers up to 670 x 640 mm (26“ x 25“), boxes / racks up to 700 x 720 x 710 mm or up to three drawer baskets for small parts, filters etc.
Horizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")

more about AQUBE® MH7

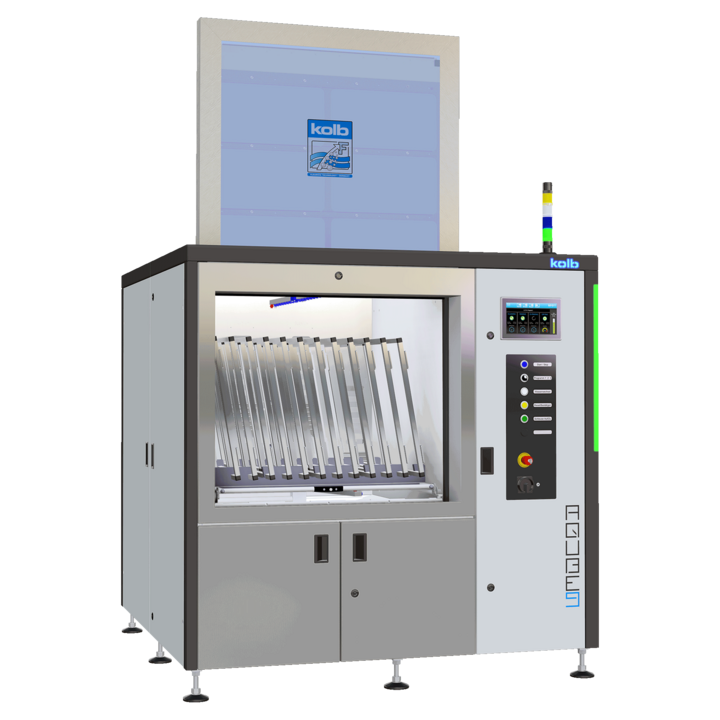

AQUBE® MH9
Fully automatic XXL allround tools cleaning system with super large process chamber

Capacity: 14 carriers up to 950 x 750 mm (37.5“ x 29.5“), boxes / racks up to 970 x 955 x 900 mm or up to four drawer baskets for small parts, filters etc.
Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")

more about AQUBE® MH9

Suitable detergents


ContraFlux® Basic

ContraFlux® Basic is an aqueous alkaline cleaning detergent for kolb AirFlow® or common spray-in-immersion cleaning systems.

Suitable for solder carriers, solder pallets, ESD boxes, PCB magazines, condensation traps

more about ContraFlux® Basic

ContraFlux® BC

ContraFlux® BC is an aqueous alkaline cleaning detergent for use in kolb systems with PowerSpray® and AirFlow® technology as well as common spray-in-air and spray-in-immersion cleaning systems.

Most suitable for solder carriers, solder pallets, ESD boxes, PCB magazines

more about ContraFlux® BC

MultiEx® A12

MultiEx® A12 is an aqueous alkaline cleaning detergent for use in kolb systems with PowerSpray® and AirFlow® technology as well as in any common spray-in-air and spray-in-immersion cleaning system.

Most suitable for PCBs, solder carriers, solder pallets, ESD boxes , PCB storage magazines

more about MultiEx® A12

MultiEx® VR series

MultiEx® VR series offers aqueous alkaline broadband detergents, ideal for ultra-fine cleaning of high-end electronic components, for use in kolb systems with PowerSpray® technology and all common spray-in-air cleaning systems.

Most suitable for: Assembled PCBs, ceramic substrates, misprints, stencils, solder carriers, solder pallets, ESD boxes, PCB magazines

more about MultiEx® VR series

PastEx® AP15

PastEx® AP is an aqueous alkaline broadband detergent, ideal for ultra-fine cleaning of high-end electronic components, for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems and optionally as well in AirFlow® systems and common pray-in-immersion devices.

Most suitable for: Assembled PCBs, ceramic substrates, misprints, solder carriers, solder pallets, ESD boxes, PCB magazines

more about PastEx® AP15

StoveEx®
Extra strong aqueous detergent concentrate

StoveEx® is an extra strong aqueous alkaline cleaning detergent concentrate for stubborn and burnt stains and epoxy resins.

more about StoveEx®
