Cleaning of solder frames, -carriers, -masks
As a manufacturer and system supplier kolb provides for the cleaning of solder frames, solder carriers and solder masks the complete process from a single source: including machinery, accessories, detergents and specially applied software controlled, fully automated electronic processes.
An important element of process stability in electronics manufacturing is maintenance cleaning. Solder frames, solder carriers, solder masks and condensate traps, filters, coolers, reflow ovens, wave soldering systems - all these components and parts must be thoroughly cleaned on a regular basis to ensure process stability.
The main task here is the removal of burnt-in fluxes as well as the removal of rosin from solder masks, solder frames and carriers. Preferably, cleaning is carried out with fully automatic cleaning systems and environmentally friendly, water-based detergents.
Suitable cleaning systems

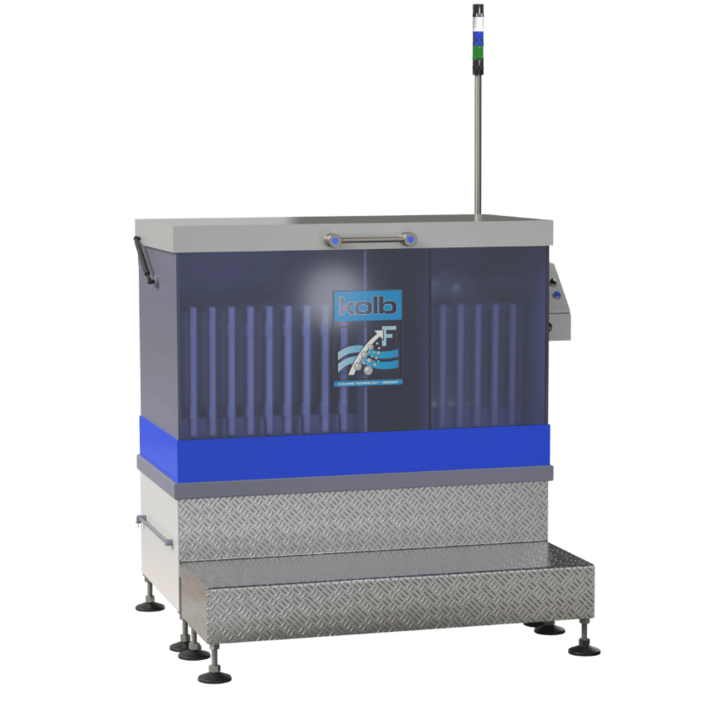

AF04
Semi-automatic three chamber system for various maintenance cleaning tasks
Semi-automatic three chamber system with AirFlow® turbulence air-in-immersion technologyCleans: Cleans carriers, pallets and condensation filters and machine parts
Usable process chamber dimensions (cleaning): W 580 • D 610 • H 470 mm
Usable process chamber dimensions (Rinsing): W 200 • D 610 • H 470 mm
Usable process chamber dimensions (Drying): W 380 • D 610 • H 470 mm
more about AF04

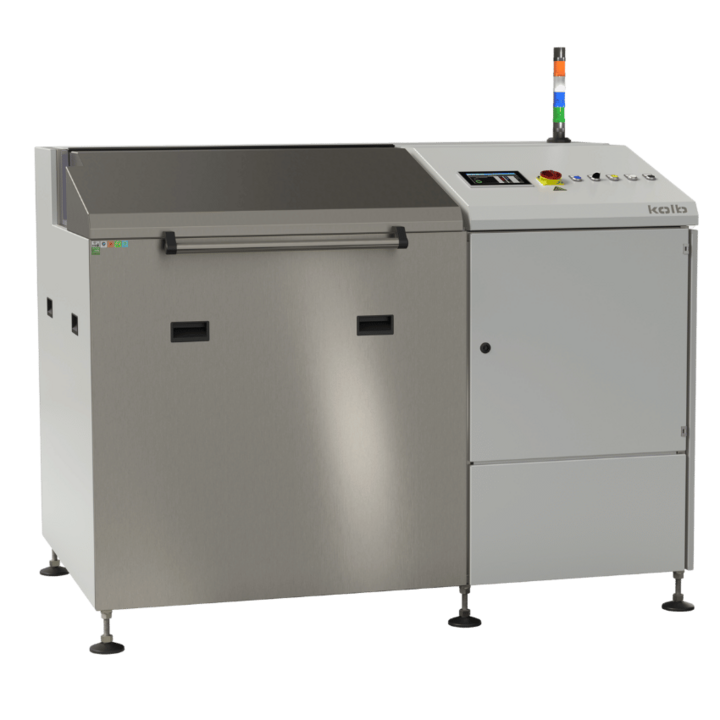

AF20
Fully automatic air-in-immersion system for maintenance cleaning
Fully automatic system with AirFlow® turbulence air-in-immersion technologyCleans: Condensation traps, solder-frames, carriers and machine parts
Usable process chamber dimensions: W 800 • D 430 • H 500 mm
more about AF20

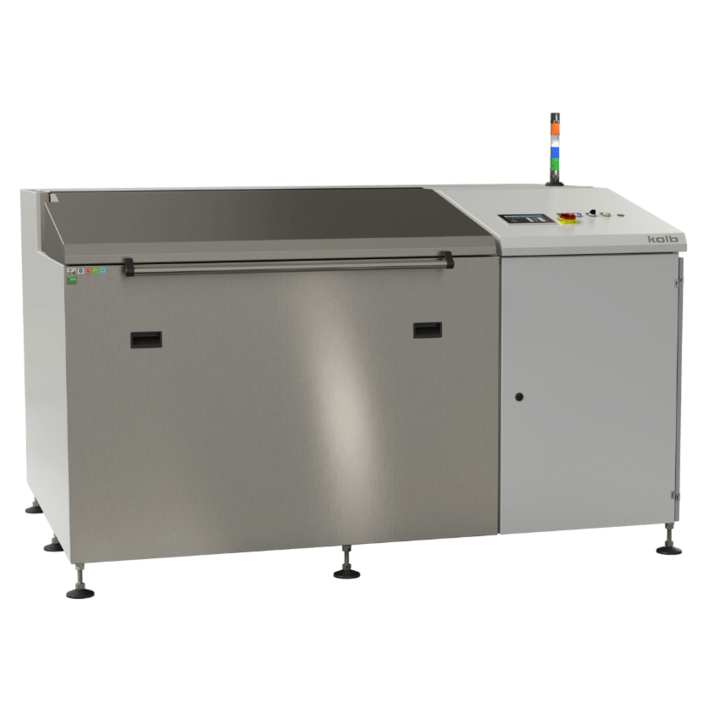

AF30
Fully automatic air-in-immersion system for maintenance cleaning
Cleaning in the entire chamber with AirFlow® air-in-immersion technologyCleans: Condensation traps, solder-frames, carriers and machine parts
Usable process chamber dimensions: W 1,300 • D 450 • H 590 mm
more about AF30

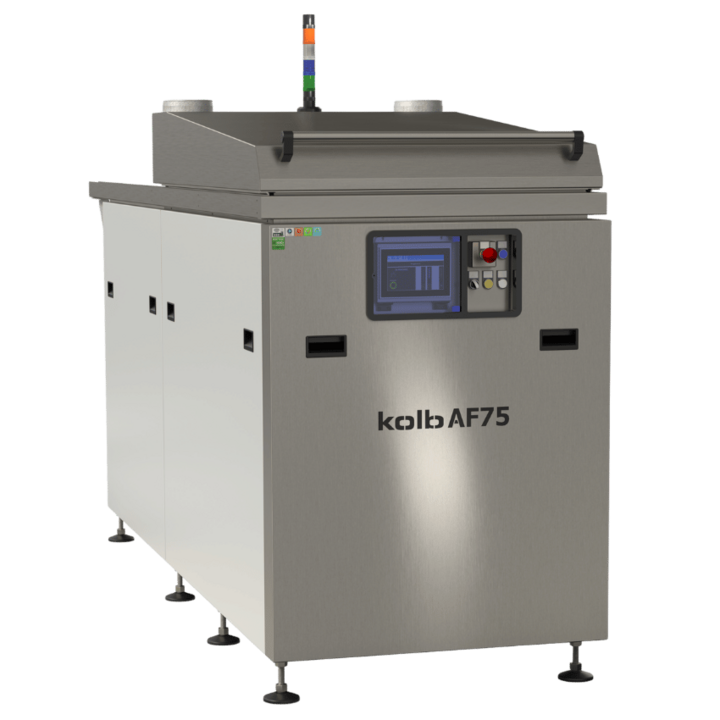

AF75
Fully automatic large-scale air-in-immersion system for maintenance cleaning
Large maintenance cleaning device with crane loading Cleans: Condensation traps of virtually all manufacturers as well as carriers, solder frames and pallets
Usable process chamber dimensions: W 705 • D 915 • H 510 mm
more about AF75
PSE 300 VL
Compact fully automatic fine cleaning economy system for stencils/screens
Capacity: Screen, stencil, carrier/washing frame up to 780 x 950 mm (31" x 37")3-step process (cleaning/rinsing, MediumWipe®, CWA® drying)
Average process time: 13 min per stencil
more about PSE 300 VL
PSE 300 VS
Fully automatic, single chamber PowerSpray® system with 2-step process
Fully automatic single chamber system with PowerSpray® technologyCleans: screens, stencils, solder carriers and misprints
Usabel chamber dimension: W 350 • D 1,000 • H 920 mm
more about PSE 300 VS

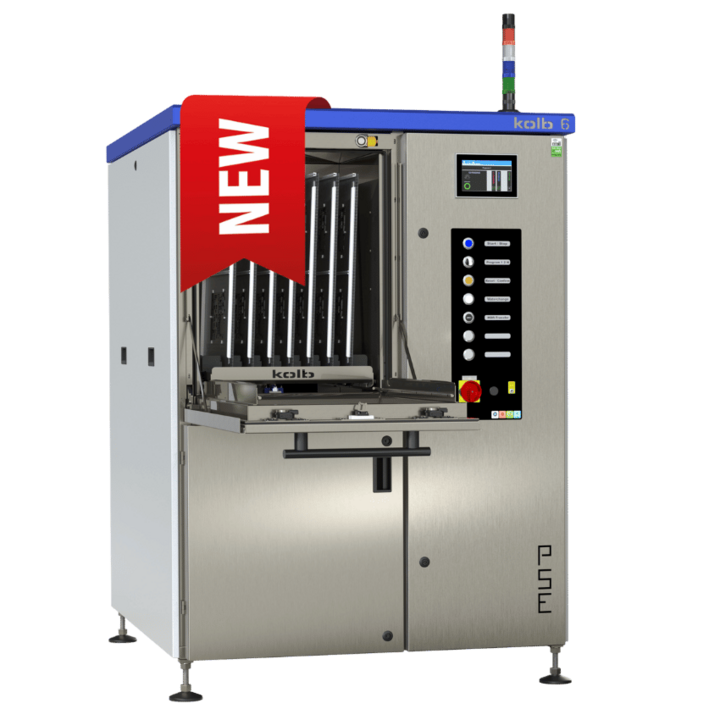

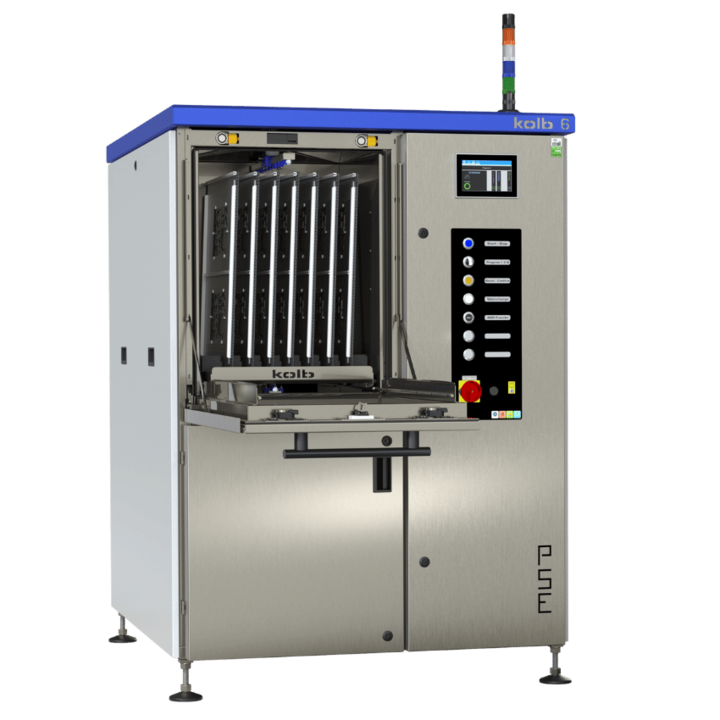

PSE MH6
Fully automatic economy cleaning system for solder frames, solder carriers, solder pallets, ESD boxes, PCB magazines, trays, machinery parts
Capacity: 7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawersHorizontal spray rotor system
Process chamber dimensions: W 540 • D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about PSE MH6

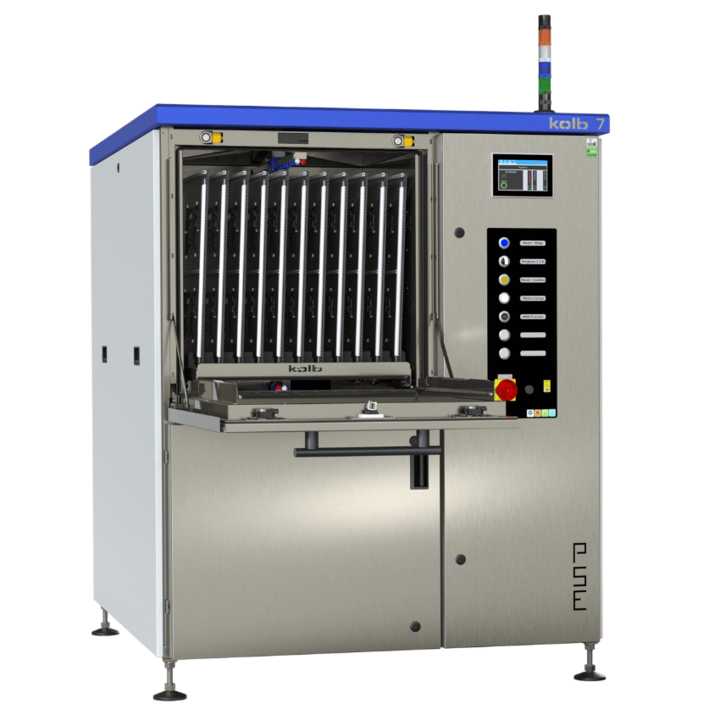

PSE MH7
Fully automatic "all-round" economy tools and parts cleaning system
Capacity: 11 carriers up to 610 x 640 mm (24“ x 25“), boxes / racks up to 640 x 640 (25" x 25") mm or up to three drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE MH7

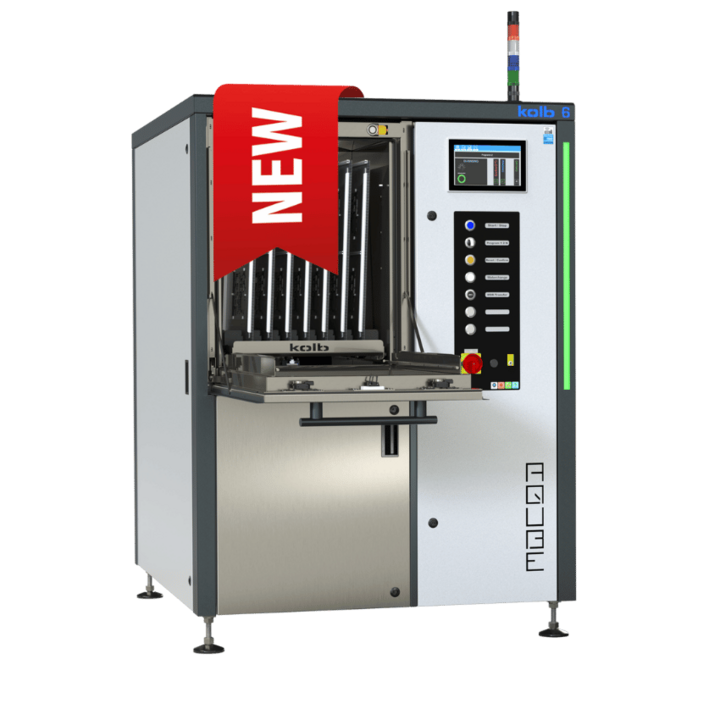

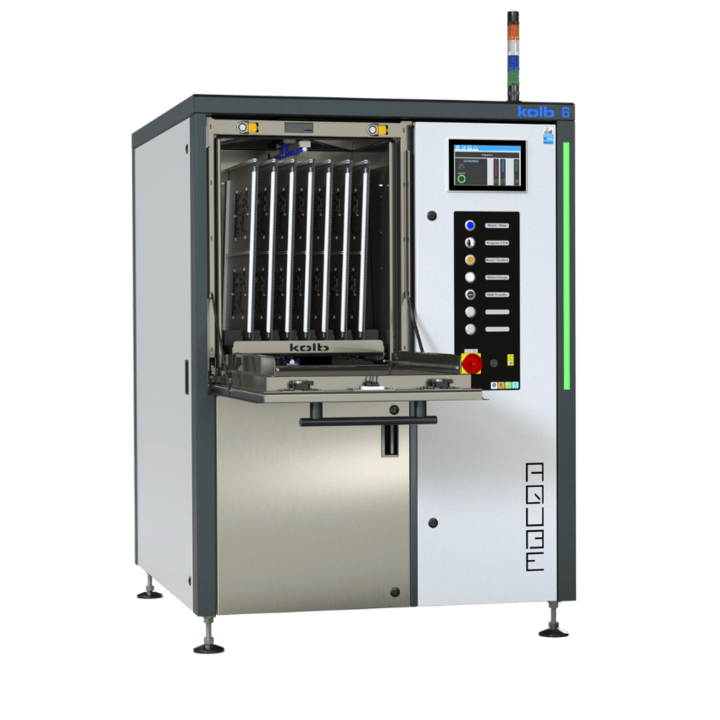

AQUBE® MH6
Fully automatic "all-round" tools and parts cleaning system
Capacity: 7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawersHorizontal PTFE-mounted rotor system with ASYNCHRON® spray rotors for thorough wetting (no blind spots)
Process chamber dimensions: W 540 ▪ D 590 ▪ H 710 mm (W 24.26" ▪ D 23.23" ▪ H 27.95")
more about AQUBE® MH6

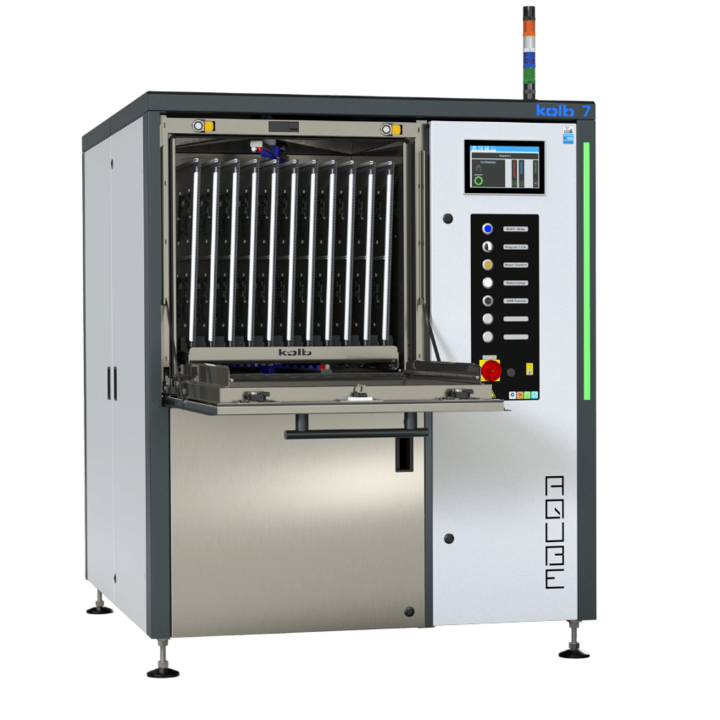

AQUBE® MH7
(also available as AQUBE® MH7 TZD)
Fully automatic "all-round" tools and parts cleaning system
Capacity: 11 carriers up to 610 x 640 (24" x 25") or 640 x 640 mm (25" x 25") or up to three washing drawersHorizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® MH7

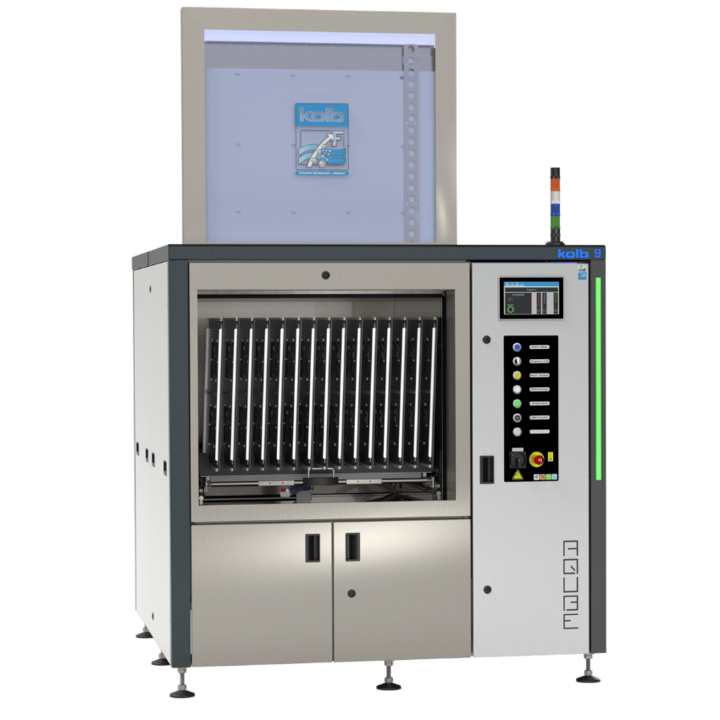

AQUBE® MH9
Superlarge fully automatic "all-round" tools and parts cleaning system
Capacity: 28 carriers up to 750 x 950 mm (29.5" x 37.5") using the washing cart use or up to four washing drawersHorizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® MH9
