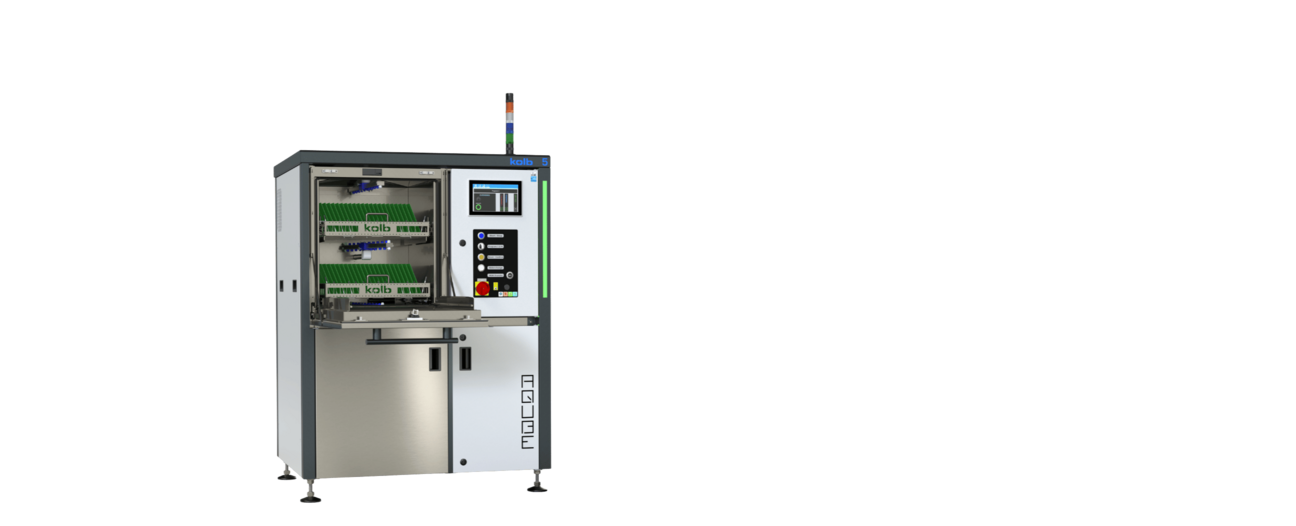

AQUBE® LH5
Fully automatic standard batch cleaner for assembled PCBs

The kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-for the smart factory (SF ready certified).

AQUBE® LH5 is a fully automatic new generation standard PCB fine cleaning system with a capacity of up to 176 (2.8 m² / 30 ft²) eurocards per process cycle.

AQUBE® LH5 is a German engineered and manufactured machine primarily for the process safe fine cleaning of assembled PCBs, hybrids (HDIs, SiPs) and misprints from reflow flux residues, resin, copper, oxide and soldering support substances.

The two-tank, trible-circuit function configuration with ClosedLoop water reprocessing ensures short cycle times and makes this system the perfect economic choice for the precision cleaning of assembled PCBs.


Highlights

  • Two tank system with triple circuit function
  • Smart Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, rinsing (tap water), DI-water rinsing, VMH®-TurboDigital hot air evaporative drying
  • Horizontal PTFE mounted rotor system with up to four asynchronous spray rotors for thorough wetting (no blind spots)
  • Heater cleaning tank A, automatic water change for the rinsing circuit, DI water system, mixing-blending unit, water measuring unit (ion contamination measurement), ion exchanger and fine filter system as standard
  • Processes and service intervals PLC controlled.
  • Event issuing and software control via touch screen
  • EDGELESS Design and VARIccess® service access: maximum capacity, easy maintenance on a very small footprint
  • Suitable for high temperature cleaning and rinsing up to 80 °C (176 °F)

PowerSpray® Technology
PolyPower® Technology
VMH® Technology
ClosedLoop Technology
PulseFlow® Technology
Traceability Application
DNAccess®
QuickChange Application

Technical data

Technology base kolb PowerSpray®
Control system (Display size) PLC - Eaton (10“)
Standard capacity (per process cycle)

176 (2.8 m² / 30 ft²) eurocards

Process chamber dimensions W 570 mm • D 590 mm • H 540 mm
Max. number washing baskets 2
Washing basket size 470 mm x 470 mm
Circuits 2+ Cleaning, Rinsing tap water / Rinsing DI-water (combined)
Volume Tank A 55 l • Cleaning
Volume Tank B/C 35 l • Rinsing tap water / Rinsing DI-water (combined)
Max. cleaning temperature 80 °C (176 °F)
Filtration up to four stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent), 4. HMA filter
Drying System VMH®-TurboDigital hot air
Drying temperature range approx. 45 - 120 °C (113 and 248 °F)
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 4 kW
Supply connection 1 (tap water) 1/2“
Supply connection 2 (DI water) 1/2“
Supply connection 3 (Compressed Air) 8 mm (87 - 116 psi - 100 l / min)
Empty Weight 350 kg (772 lbs)
Footprint 840 mm x 1180 mm (33.07″ x 46.46″)

Certifications


Downloads

Product Information
AQUBE® LH5
1 MB

REACH, PFAS etc.

back

Application overview

PCBs,Hybrids, Misprints
PCBs,
Hybrids, Misprints
most suitable
Stencils, ScreensMisprints
Stencils, Screens
Misprints
optional suitable
Solder Frames,Carriers & Palettes
Solder Frames,
Carriers & Palettes
optional suitable
ESD-boxes, ContainersPCB Magazines
ESD-boxes, Containers
PCB Magazines
optional suitable
Condensation Traps,Filters, Steel Sheets
Condensation Traps,
Filters, Steel Sheets
not suitable
Optional suitable applications can also be optimally realized with the appropriate options.
