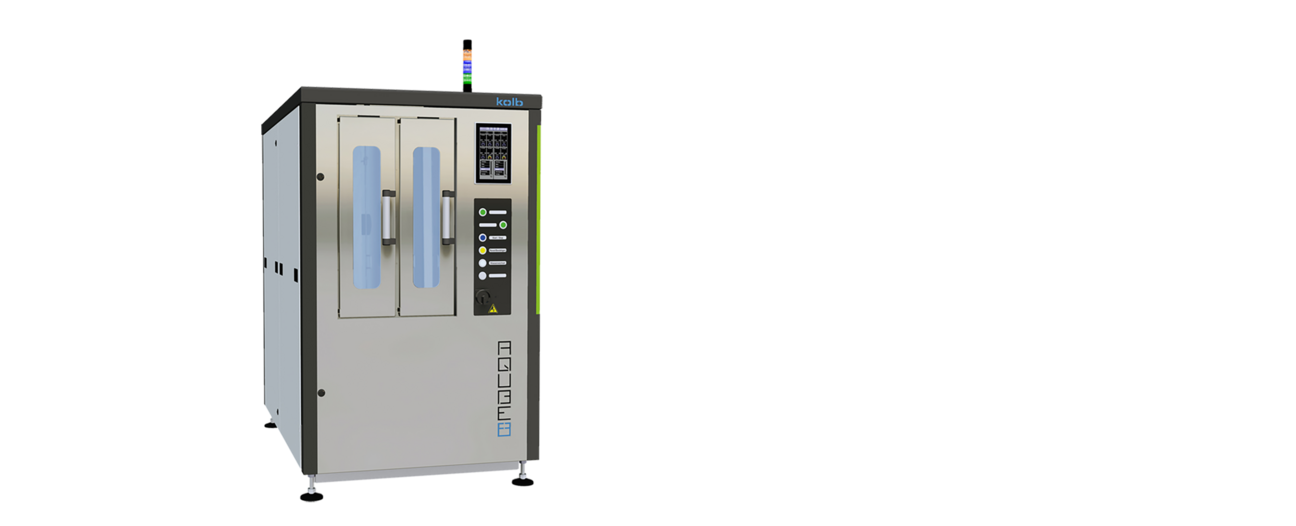

AQUBE® MV8 sTWIN
Parallel or sequential cleaning of two stencils

The kolb AQUBE® systems are next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready certified).

AQUBE® MV8 sTWIN is a high-end dual chamber PowerSpray® system for the thorough parallel or squential cleaning of two stencils, which provides excellent cleaning results in a short cycle time.

AQUBE® MV8 sTWIN cleans two stencils up to 950 x 770 mm (37 "x 30"), making it especially suitable for large-scale manufacturing. While common systems with double capacity have to wait until two stencils are ready for cleaning or until the running cleaning cycle has ended, AQUBE® MV8 sTWIN can start cleaning one stencil immediately and a second one later (sequential) or in parallel.


Highlights

  • Two full-fledged process chambers for parallel or sequential cleaning
  • Two tank system with four separate circuits
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, MediumWipe®, rinsing (tap water), drying with warm air
  • Vertical fourfold rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
  • XPower magnetic coupled pumping system
  • Short cycle time (approx. 7 min.) depending on used detergent and contamination
  • ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
  • Water-free operation possible: Instead of water the system can use a suitable cleaning / rinsing detergent for rinsing
  • Process and service intervals PLC controlled
  • Event issuing and software control via high resolution 7" display with capacitive multi-touch
  • PLC data recording and importing by scanner possible
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint

PowerSpray<sup>®</sup> Technology
ClosedLoop Technology
CWA<sup>®</sup> Technology
DNAccess<sup>®</sup>
Traceability Application
PulseFlow<sup>®</sup> Technology
Solar Industry certified Product

Technical data

Technology base kolb PowerSpray®
Control system (Display size) PLC - Eaton (10“)
Standard capacity (per process cycle)

2 Stencils, screens, carriers up to 950 x 770 mm (37" x 30")

Process chamber dimensions W 440 mm • D 1000 mm • H 875 mm
Clamping space for PCBA, Misprints etc. H 525 mm x W 730 mm
Max. stencil, carrier, washing frame size H 770 mm x W 950 mm
Circuits 2+ Cleaning, Rinsing tap water / Rinsing DI-water (combined)
Volume Tank A 75 l • Cleaning
Volume Tank B/C 75 l • Rinsing tap water / Rinsing DI-water (combined)
Max. cleaning temperature 50 °C (122 °F)
Filtration Up to three stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent)
Drying System CWA® supercharger
Drying temperature range Compressed warm air
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 7 kW
Supply connection 1 (tap water) 1/2“
Supply connection 3 (Compressed Air) 8 mm (87 - 116 psi - 100 l / min)
Empty Weight 630 kg (1,389 lbs)
Footprint 1050 mm x 1700 mm (41.34″ x 66.93″)

Certifications


Downloads

Product Information
AQUBE® MV8 sTWIN
1 MB

back

Product video

Vimeo Video: AQUBE MV8 sTWIN
The protection of your data is important to us. Only when you click here, you allow us to load the video from the Vimeo website.

Application overview

PCBs,Hybrids, Misprints
PCBs,
Hybrids, Misprints
optional suitable
Stencils, ScreensMisprints
Stencils, Screens
Misprints
most suitable
Solder Frames,Carriers & Palettes
Solder Frames,
Carriers & Palettes
optional suitable
ESD-boxes, ContainersPCB Magazines
ESD-boxes, Containers
PCB Magazines
not suitable
Condensation Traps,Filters, Steel Sheets
Condensation Traps,
Filters, Steel Sheets
not suitable
Optional suitable applications can also be optimally realized with the appropriate options.
