Cleaning of machinery parts and tools
As a manufacturer and system supplier kolb provides for the cleaning of machinery parts and also medical (e.g.instruments, containers) and industrial parts (e.g.bulk, milling parts, complex parts) the complete process from a single source: including machinery, accessories, detergents and specially applied software controlled, fully automated electronic processes.
Machine parts that become contaminated in the production process due to deposits of condensate, flux, rosin, grease, dust and oil, and thus jeopardize error-free reproducibility of production processes, must be cleaned regularly and thoroughly. The same applies, for example, to turned and milled parts from prefabrication.
In addition to cleaning machine parts from electronics manufacturing, maintenance cleaning, systems and detergents from kolb are also ideal for cleaning medical or industrial parts - either to disinfect products or to remove production residues and thus ensure the quality of downstream processes or the cleanliness of end products.
Suitable cleaning systems
AF04
Semi-automatic three chamber system for various maintenance cleaning tasks
Semi-automatic three chamber system with AirFlow® turbulence air-in-immersion technologyCleans: Cleans carriers, pallets and condensation filters and machine parts
Usable process chamber dimensions (cleaning): W 580 • D 610 • H 470 mm
Usable process chamber dimensions (Rinsing): W 200 • D 610 • H 470 mm
Usable process chamber dimensions (Drying): W 380 • D 610 • H 470 mm
more about AF04
AF20
Fully automatic one chamber system for all maintenance cleaning tasks
Fully automatic system with AirFlow® turbulence air-in-immersion technologyCleans: Condensation traps, solder-frames, carriers and machine parts
Usable process chamber dimensions: W 810 • D 435 • H 520 mm
more about AF20
AF30
Fully automatic one chamber XL system with AirFlow® technology
Cleaning in the entire chamber with AirFlow® air-in-immersion technologyCleans: Condensation traps, solder-frames, carriers and machine parts
Usable process chamber dimensions: W 1.300 • D 450 • H 600 mm
more about AF30
AF75
XXL AirFlow® system for the bulk cleaning of condensation filters and coolers
Large maintenance cleaning device with crane loading Cleans: Condensation traps of virtually all manufacturers as well as carriers, solder frames and pallets
Usable process chamber dimensions: W 770 • D 1.280 • H 600 mm
more about AF75
PSE MH5
Economy tools cleaning system especially for solder carriers, pallets, trays
Capacity: 7 carriers up to 480 x 430 mm (19“ x 17“), boxes / racks up to 540 x 590 x 570 mm or up to two drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")
more about PSE MH5
PSE MH7
Fully automatic XL tools and maintenance economy cleaning system
Capacity: 11 carriers up to 670 x 640 mm (26“ x 25“), boxes / racks up to 700 x 720 x 710 mm or up to three drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE MH7
AQUBE® MH5
Tools cleaning system especially for solder carriers, pallets, trays
Capacity: 7 carriers up to 480 x 430 mm (19“ x 17“), boxes / racks up to 540 x 590 x 570 mm or up to two drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 540 ▪ D 590 ▪ H 570 mm (W 21.25" ▪ D 23.22" ▪ H 22.44")
more about AQUBE® MH5

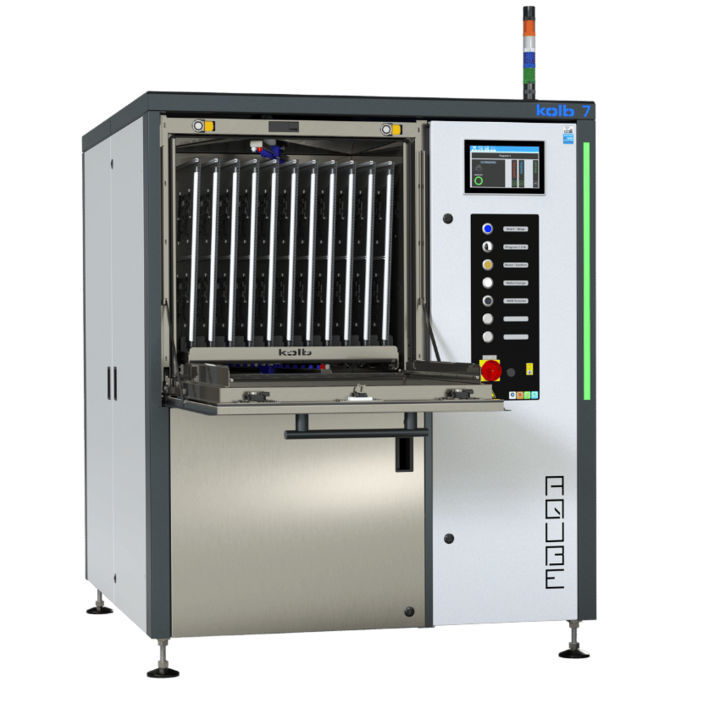

AQUBE® MH7
Fully automatic XL tools and maintenance cleaning system
Capacity: 11 carriers up to 670 x 640 mm (26“ x 25“), boxes / racks up to 700 x 720 x 710 mm or up to three drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® MH7
AQUBE® MH9
Fully automatic XXL allround tools cleaning system with super large process chamber
Capacity: 14 carriers up to 950 x 750 mm (37.5“ x 29.5“), boxes / racks up to 970 x 955 x 900 mm or up to four drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® MH9
Suitable detergents
ContraFlux® Basic
ContraFlux® Basic is an aqueous alkaline cleaning detergent for kolb AirFlow® or common spray-in-immersion cleaning systems. Suitable for solder carriers, solder pallets, ESD boxes, PCB magazines, condensation traps.
ContraFlux® Basic
ContraFlux® FM
Special detergent for the removal of condensate residues
ContraFlux® FM is an aqueous alkaline cleaning detergent for use in kolb cleaning systems with AirFlow® technology or common spray-in-immersion cleaning systems. Most suitable for condensation traps, condensation filters, coolers, cyclones
ContraFlux® FM
