PSE M series
Two stencils, up to 11 carriers or machinery parts, boxes in one cleaning cycle
The systems of the PSE M series offer multi option economy systems for almost every requirement of tools cleaning such as the cleaning of stencils, solder carriers / masks, ESD boxes, magazines, pallets, machinery parts and other small parts from paste, adhesive, flux, oil dust and grease.
The two tank combi systems with triple circuit function and a fully automatic 3 or 4step process (cleaning, MediumWipe®, rinsing, drying) and ClosedLoop water processing are very compact, energy saving and well equipped in their basic version.

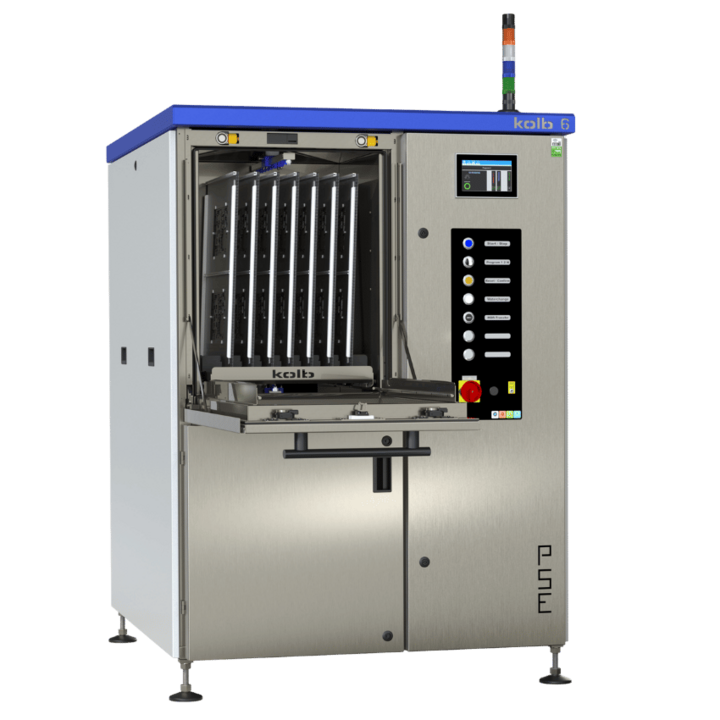

PSE MH6
Fully automatic economy cleaning system for solder frames, solder carriers, solder pallets, ESD boxes, PCB magazines, trays, machinery parts
Capacity: 7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawersHorizontal spray rotor system
Process chamber dimensions: W 540 • D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about PSE MH6
PSE MH7
Fully automatic "all-round" economy tools and parts cleaning system
Capacity: 11 carriers up to 610 x 640 mm (24“ x 25“), boxes / racks up to 640 x 640 (25" x 25") mm or up to three drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE MH7
PSE MV3 ONE
Compact fully automatic fine cleaning economy system for stencils/screens
Capacity: Screen, stencil, carrier, washing frame up to 770 x 950 mm (30" x 37")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about PSE MV3 ONE
PSE MV3 ONE XL
Compact fully automatic fine cleaning economy system for extra large stencils/screens
Capacity: Screen, stencil, carrier, washing frame up to 770 x 1,560 mm (30" x 61")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about PSE MV3 ONE XL
PSE MV3 ONE XXL
Economy special system for the fine cleaning of super large stencils
Capacity: Stencil/screen up to 1,500 x 1,560 mm (59" x 61")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans screens and stencils from SMD paste, SMD adhesive, soldering support substances, oil & dust
more about PSE MV3 ONE XXL
PSE MV8 TWIN
Economy fine cleaning system for two large stencils/screens in one cycle
Capacity: 2 Stencils, screens, carriers up to 800 x 900 mm (32" x 35")Fully automatic 4-step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans screens, stencils and PumpPrints from SMD paste, SMD adhesive, soldering support substances, oil & dust
more about PSE MV8 TWIN
