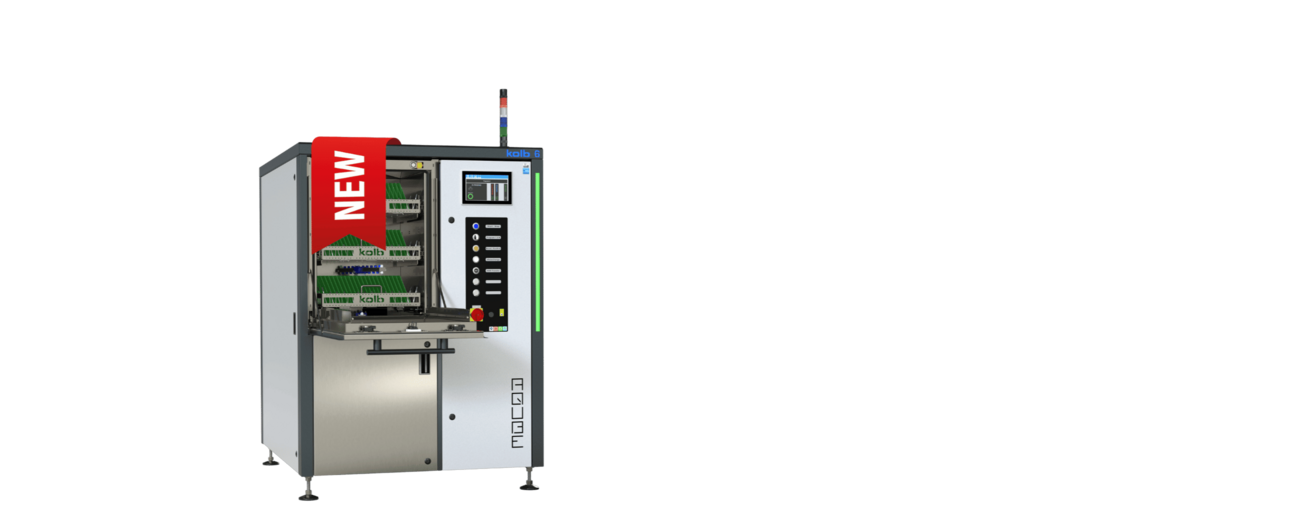

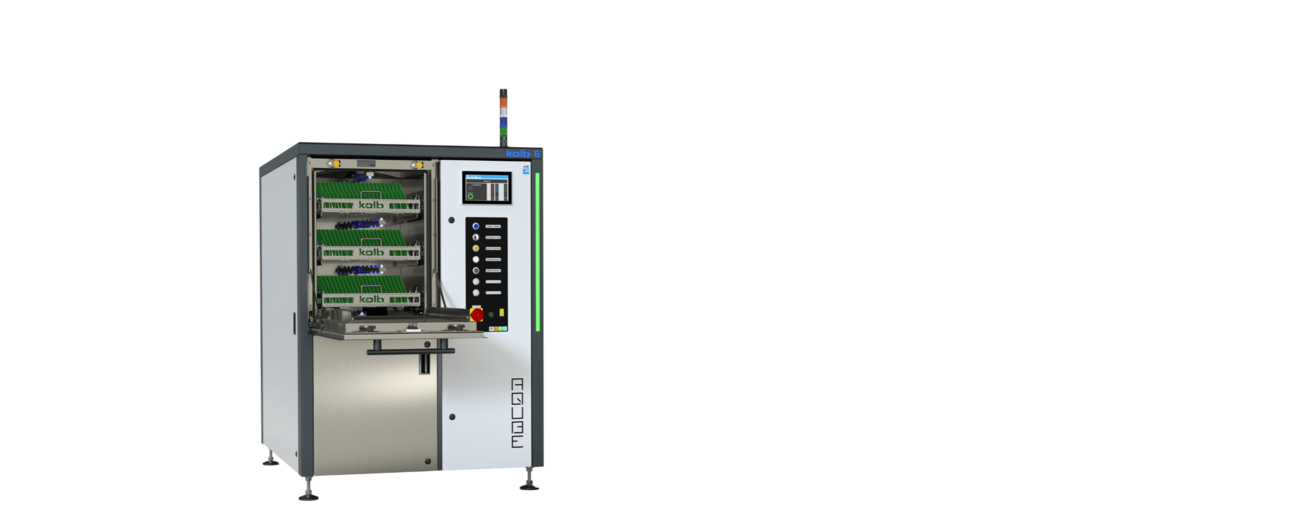

AQUBE LH6

AQUBE^® LH6
Fully automatic standard ultra-fine cleaning system for PCBAs, hybrids and misprints from flux residues, resin, copper, oxide and soldering support substances

The kolb AQUBE^{^®}LH6 is a fully automatic standard ultra-fine cleaning system for assemblies/printed circuit boards/PCBAs,
hybrids, SiPs etc. and single-side mounted misprints with a capacity of up to 246 (3.9 m² ) eurocards and a relative cleaning
time of approx. 15 seconds per card per per cleaning cycle.

The configuration with two tanks and triple circulation function and up to 80 °C cleaning temperature and up to 120 °C drying
temperature ensures short cycle times and makes the AQUBE^{^®} LH6 the perfect choice for the qualified cleaning of assembled
PCBAs/circuit boards.

The compact, easy-to-operate and easy-to-maintain system is Smart Factory ready and pre-equipped for extended water
management.

Highlights

Two-tank system with triple circuit function
Average process time: 65 min/cycle = approx. 15 s per eurocard
Smart Factory ready: remote control, traceability (PLC data scanning and memorizing)
Fully automatic 4-step process: cleaning, rinsing (tap water), DI-water rinsing, VMH ^® TurboDigital hot air evaporative drying
Horizontal PTFE-mounted rotor system with up to six ASYNCHRO ^® spray rotors for thorough wetting (no blind spots)
Heater cleaning tank A, automatic water change for the rinsing circuit, DI-water system, mixing-blending unit, water measuring unit (ion contamination measurement), ion exchanger and fine filter system as standard
Processes and service intervals PLC controlled with event issuing and software control via touch screen
Suitable for high temperature cleaning and rinsing up to 80 °C (176 °F)
High capacity on a small footprint, fast and easy maintenance

Technical data
Technology base	kolb PowerSpray^®
Control system (Display size)	PLC - Eaton (10“)
Standard capacity (per process cycle)	up to 246 (3.9 m² /41.9 ft 2 ) eurocards
Process chamber dimensions	W 540 mm • D 590 mm • H 710 mm
Max. number washing baskets	3
Washing basket size	470 mm x 470 mm
Circuits	2: Cleaning, Rinsing tap water / Rinsing DI-water (combined)
Volume Tank A	95 l • Cleaning
Volume Tank B/C	65 l • Rinsing tap water / Rinsing DI-water (combined)
Max. cleaning temperature	80 °C (176 °F)
Filtration	1. Full flow coarse filter < 2mm (0.08"), 2. 20“ fine filter (1 - 100 µm - process dependent)
Drying System	VMH^®-TurboDigital hot air
Drying temperature range	approx. 45 - 120 °C (113 and 248 °F)
Power supply	400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption	8 kW
Supply connection 1 (tap water)	1/2“
Supply connection 2 (DI water)	1/2“
Supply connection 3 (Compressed Air)	8 mm (87 - 116 psi - 100 l / min)
Empty Weight	410 kg (904 lbs)
Footprint	1400 mm x 1240 mm (55.12″ x 48.82″)

Certifications

EASOTECH certified

EASOTECH assures state of the art technology with the easiest possible operation of complex engineering performance and intelligent software design.

WATERSAVE certified

The kolb technologies ClosedLoop and CrossLoop are WATERSAVE certified and save significantly water by recycling contaminated rinsing liquids.

ENERSAVE certified

kolb cleaning systems are ENERSAVE certified for offering top performance and using less energy than any comparable competitor product.

SAFEGAR certified

The 5-star SAFEGAR certificate ensures that all relevant safety and protective functions are included in the standard version of every kolb cleaning system.

Smart Factory ready / Premium

Smart Factory ready Premium systems can be completely integrated into Industry 4.0 productions with traceability, remote control, remote maintanance assistance as well as integration into comprehensive monitoring systems.
