PSE MH6

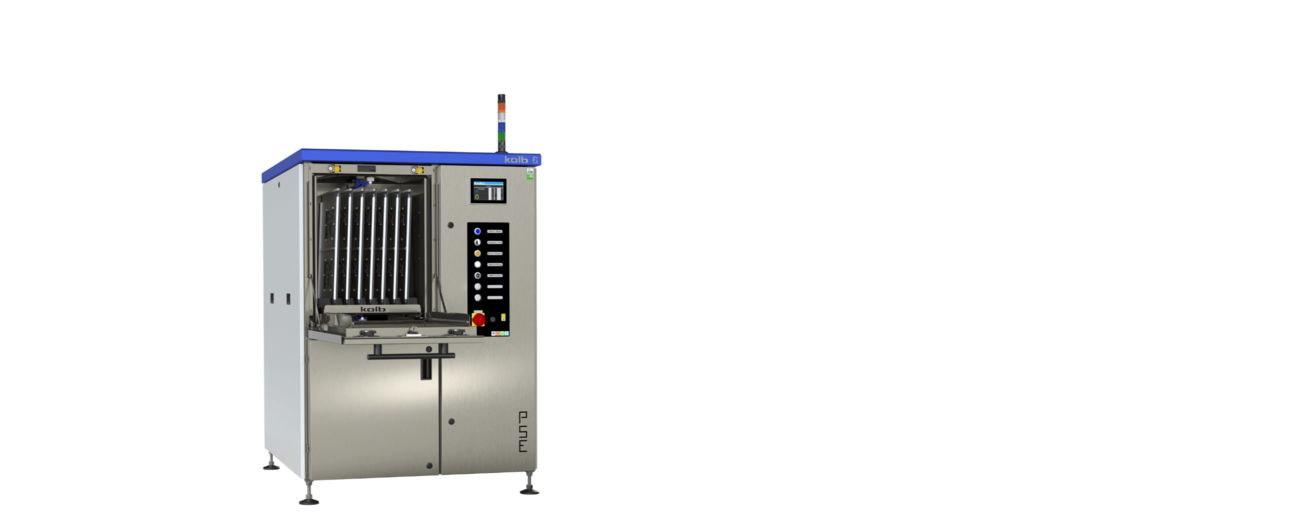

PSE MH6
Fully automatic tools cleaning economy system

The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.

PSE MH6 is an "all-round” cleaning system with a large process chamber for almost every requirement of tools and maintenance cleaning such as the cleaning of carriers, containers and parts from flux residues, oil dust and grease.

The two-tank and triple circuit configuration ensures short cycle times and makes this system the perfect economic choice for the maintenance cleaning in electronics production.

With up to 80 °C (176 °F) cleaning and 90 °C (194 °F) drying temperature also ideally suited for the kolb coating cleaning/paint stripping turn key solution (machine, detergent, process design, software).

Highlights

Two-tank system with triple circuit function
Average process time: 70 min/cycle = approx. 6 min per carrier
Fully automatic 3-step process: cleaning, rinsing (tap water), VMH^® hot air evaporative drying
Horizontal PTFE mounted rotor system with ASYNCHRO^® spray rotors for thorough wetting (no blind spots)
ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
Processes and service intervals PLC controlled
Event issuing and software control via touch screen
Suitable for high temperature cleaning and rinsing up to 80 °C (176 °F)
High capacity on a small footprint
Fast and easy maintenance

Technical Data (Excerpt)
Technology base	kolb PowerSpray^®
Standard capacity (per process cycle)	7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawers
Process chamber dimensions	W 540 mm • D 590 mm • H 710 mm
Max. stencil, carrier, washing frame size	H 610 mm x W 490 mm
Circuits	2: Cleaning, Rinsing
Volume Tank A (Cleaning)	55 l
Volume Tank B (Rinsing)	35 l
Max. cleaning temperature	80 °C (176 °F)
Filtration	1. Full flow coarse filter < 2mm (0.08"), 2. 20“ fine filter (1 - 100 µm - process dependent)
Drying System	VMH^® hot air
Drying temperature range	approx. 70 - 90 °C (158 and 194 °F)
Footprint	1400 mm x 1550 mm (55.12″ x 61.02″)

Certifications

WATERSAVE certified

The kolb technologies ClosedLoop and CrossLoop are WATERSAVE certified and save significantly water by recycling contaminated rinsing liquids.

ENERSAVE certified

kolb cleaning systems are ENERSAVE certified for offering top performance and using less energy than any comparable competitor product.

EASOTECH certified

EASOTECH assures state of the art technology with the easiest possible operation of complex engineering performance and intelligent software design.

SAFEGAR certified

The 5-star SAFEGAR certificate ensures that all relevant safety and protective functions are included in the standard version of every kolb cleaning system.

Smart Factory ready / Premium

Smart Factory ready Premium systems can be completely integrated into Industry 4.0 productions with traceability, remote control, remote maintanance assistance as well as integration into comprehensive monitoring systems.
