AQUBE MV9 QUAD

AQUBE^® MV9 QUAD
Cleans screens, stencils and PumpPrints from SMD paste, SMD adhesive, soldering support substances, oil & dust

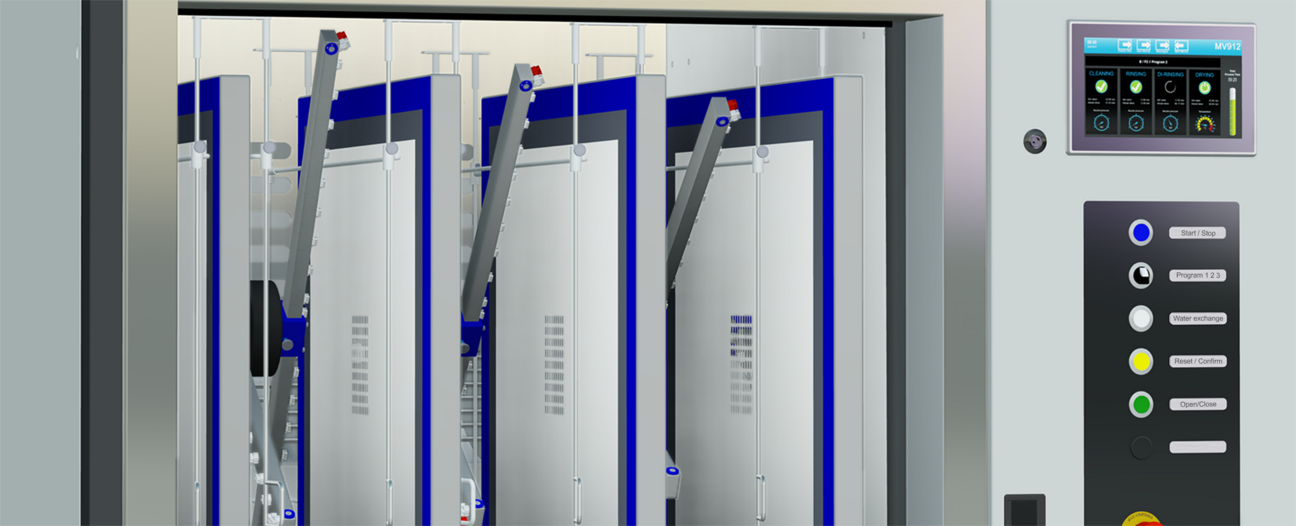

The AQUBE^{^®} MV9 QUAD is a fully automatic large-scale system for the reliable fine cleaning of four screens, stencils or PumpPrints in one wash cycle. Ideal for large-scale production facilities with several stencil printers.

It removes contaminants such as SMD paste, SMD adhesive, conductive materials, flux, oil, grease or dust quickly and thoroughly.

This system can supply up to four printers with freshly cleaned and dry stencils or screens every quarter of an hour. The configuration with two tanks and two independent circuits as well as ClosedLoop water treatment as a standard ensures short throughput times and makes this machine the perfect economic choice for thorough volume cleaning of stencils and screens.

The compact, easy-to-operate and easy-to-maintain system is Smart-Factory-ready.

Highlights

Two-tank system with two separate circuits
Average process time: 28 min/cycle = approx. 7 min per stencil
Intelligent network connectivity for implementation in industry 4.0 smart factories
Fully automatic 4-step process: cleaning, MediumWipe^®, rinsing, CWA^® supercharger compression drying
Vertical PTFE-mounted rotor system with eight ASYNCHRON^® spray rotors for thorough wetting (no blind spots)
Water free operation possible with a suitable cleaning/rinsing detergent
ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
Processes and service intervals PLC controlled with event issuing and software control via touch screen
Safe installation close to the production line/screen printer possible; no special protection required
Maximum performance on a comparably small footprint, large access points for quick and easy maintenance

Technical data
Technology base	kolb PowerSpray^®
Control system (Display size)	PLC - Eaton (10“)
Standard capacity (per process cycle)	4 screens/stencils/carriers up to 800 x 940 (31.5“ x 37")
Process chamber dimensions	W 970 mm • D 955 mm • H 900 mm
Clamping space for PCBA, Misprints etc.	H 730 mm x W 525 mm
Max. stencil, carrier, washing frame size	H 800 mm x W 940 mm
Circuits	2: Cleaning, Rinsing
Volume Tank A	125 l • Cleaning
Volume Tank B	125 l • Rinsing tap water
Max. cleaning temperature	50 °C (122 °F)
Filtration	1. Full flow coarse filter < 2mm (0.08"), 2. 20“ fine filter (1 - 100µm - process dependent)
Drying System	CWA^® supercharger
Drying temperature range	Compressed warm air
Power supply	400 V AC, 32 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption	8 kW
Supply connection 1 (tap water)	1“
Supply connection 2 (DI water)	1“
Supply connection 3 (Compressed Air)	8 mm (87 - 116 psi - 100 l / min)
Empty Weight	950 kg (2,095 lbs)
Footprint	1700 mm x 1850 mm (66.93″ x 72.83″)

Certifications

ENERSAVE certified

kolb cleaning systems are ENERSAVE certified for offering top performance and using less energy than any comparable competitor product.

WATERSAVE certified

The kolb technologies ClosedLoop and CrossLoop are WATERSAVE certified and save significantly water by recycling contaminated rinsing liquids.

EASOTECH certified

EASOTECH assures state of the art technology with the easiest possible operation of complex engineering performance and intelligent software design.

SAFEGAR certified

The 5-star SAFEGAR certificate ensures that all relevant safety and protective functions are included in the standard version of every kolb cleaning system.

Smart Factory ready / Premium

Smart Factory ready Premium systems can be completely integrated into Industry 4.0 productions with traceability, remote control, remote maintanance assistance as well as integration into comprehensive monitoring systems.
