PSE LH series
Economy systems for fine cleaning of assembled PCBs and hybrids
The economy systems of the kolb PSE L series are especially designed to offer process safe basic fine cleaning for PCBs, SiPs, HDI boards, hybrids and misprints from contaminations such as fluxes, rosin, resin, copper, Cu oxide and aggressive solder-support substances. PSE L systems clean up to 830 (19 m²) eurocards in four variable horizontal drawer baskets (relative cleaning time per board: approx. 8 seconds).
The systems with two tanks and three circuits and a fully automatic up to 5step process (1. Cleaning, 2. MediumWipe®, 3. Rinsing (tap water), 4. DI-rinsing with continuous DI-water processing, 5. Drying) are extremely compact and energy saving.
PSE LH7
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 520 (8.4 m²/90.4 ft²) eurocards in up to three variable drawer basketsHorizontal up to sixfold spray rotors, VMH® Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE LH7

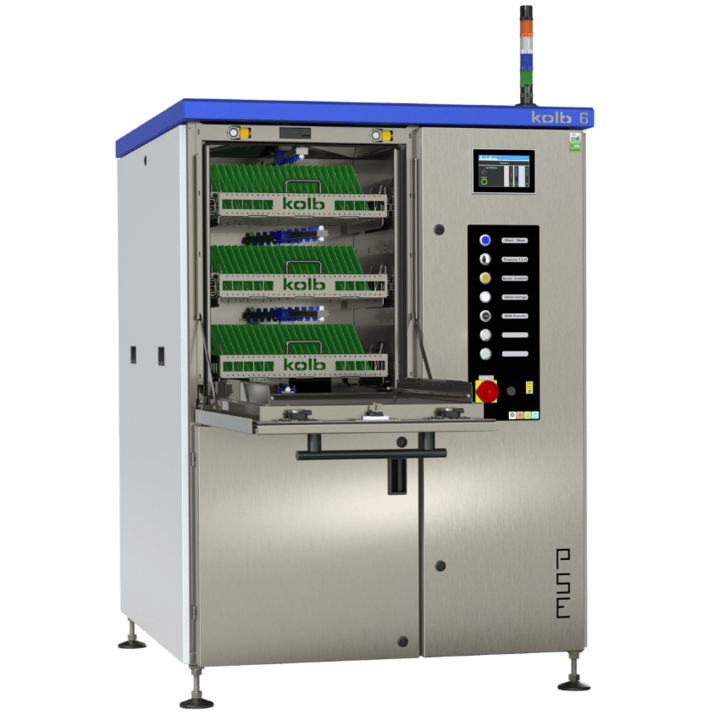

PSE LH6
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: 246 (3.9 m2 /41.9 ft2 ) eurocards in up to three variable drawer basketsHorizontal PTFE-mounted rotor system with up to six ASYNCHRON® spray rotors for thorough wetting (no blind spots)
Process chamber dimensions: W 540• D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about PSE LH6
PSE LH5
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 176 equals 2.8m 2 (30 ft 2 ) eurocards in up to two variable drawer basketsHorizontal up to fourfold spray rotors, VMH®-Turbo evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm
more about PSE LH5
