Fully automatic economy ultra-fine cleaning system for PCBs, hybrids and misprints

The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.

PSE LH6 is a completely German engineered and manufactured fully automatic ultra-fine cleaning system for assemblies/PCBs, hybrids, SiPs etc. with a capacity of up to 176 (2.8m²) eurocards per cleaning cycle.

The configuration with two tanks and triple circulation function, up to 80 °C cleaning temperature and up to 90 °C drying temperature ensures short throughput times and makes the PSE LH6 a perfect economic choice for the qualified cleaning of assemblies/PCBs.

Highlights

Two-tank system with triple circuit function
Average process time: 75 min/cycle = approx. 17 s per eurocard
Fully automatic 4-step process: cleaning, rinsing (tap water), DI-water rinsing, VMH^® evaporative drying
Horizontal PTFE-mounted rotor system with up to four ASYNCHRON^® spray rotors for thorough wetting (no blind spots)
Heater cleaning tank A, automatic water change for the rinsing circuit, DI water system, mixing-blending unit, water measuring unit (ion contamination measurement), ion exchanger and fine filter systems for both tank circuits as standard
Processes and service intervals PLC controlled
Event issuing and software control via touch screen
Suitable for high temperature cleaning and rinsing up to 80 °C (176 °F)
High capacity on a very small footprint, fast and easy maintenance

Technical data
Technology base	kolb PowerSpray^®
Control system (Display size)	PLC - Eaton (7“)
Standard capacity (per process cycle)	246 (3.9 m² /41.9 ft² ) eurocards
Process chamber dimensions	W 540 mm • D 590 mm • H 710 mm

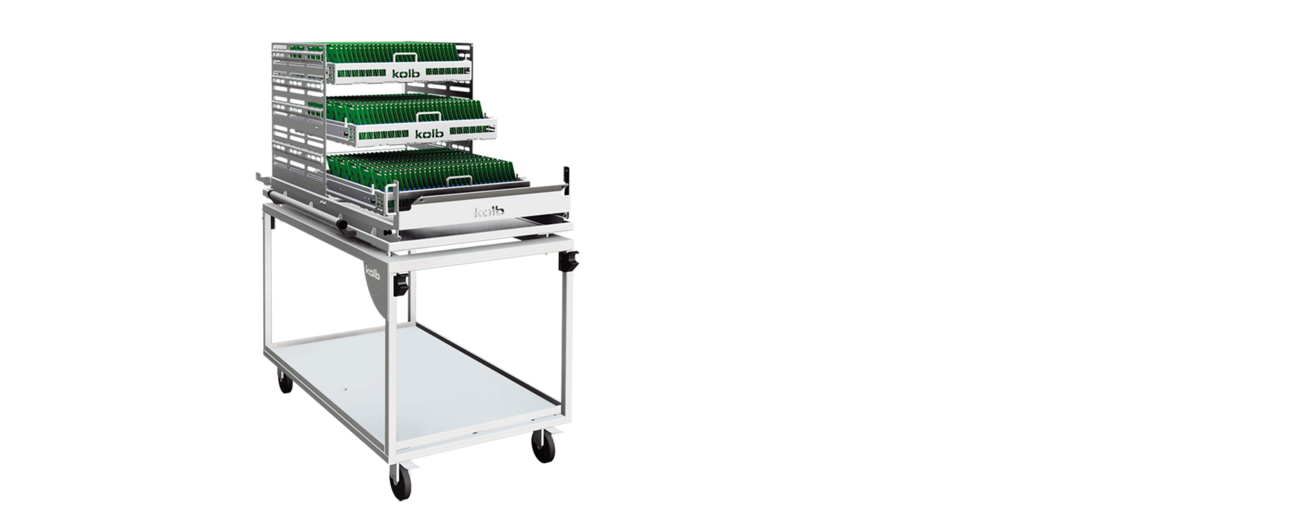

Max. number washing baskets	3
Washing basket size	470 mm x 470 mm
Circuits	2: Cleaning, Rinsing tap water / Rinsing DI-water (combined)
Volume Tank A	95 l • Cleaning
Volume Tank B/C	65 l • Rinsing tap water / Rinsing DI-water (combined)
Max. cleaning temperature	80 °C (176 °F)
Filtration	Full flow coarse filter < 2 mm (0.08"), 2. 20“ fine filter (1 - 100 µm - process dependent)
Drying System	VMH^® hot air
Drying temperature range	approx. 70 - 90 °C (158 and 194 °F)
Power supply	400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption	8 kW
Supply connection 1 (tap water)	1/2“
Supply connection 2 (DI water)	1/2“
Supply connection 3 (Compressed Air)	8 mm (87 - 116 psi - 100 l / min)
Empty Weight	410 kg (904 lbs)
Footprint	1400 mm x 1240 mm (55.12″ x 48.82″)

Certifications

EASOTECH certified

EASOTECH assures state of the art technology with the easiest possible operation of complex engineering performance and intelligent software design.

WATERSAVE certified

The kolb technologies ClosedLoop and CrossLoop are WATERSAVE certified and save significantly water by recycling contaminated rinsing liquids.

ENERSAVE certified

kolb cleaning systems are ENERSAVE certified for offering top performance and using less energy than any comparable competitor product.

SAFEGAR certified

The 5-star SAFEGAR certificate ensures that all relevant safety and protective functions are included in the standard version of every kolb cleaning system.

Smart Factory ready / Standard

Smart Factory ready economy systems can be equipped with a basic traceability function and thus be easily integrated into industry 4.0 production environments.
