Solder frame & carrier cleaning
The main task in the maintenance cleaning of solder frames and carriers is defluxing—the removal of baked-on fluxes and also the cleaning of rosin-free no-clean flux residues.
Our cleaning systems ensure process reliability and thus help to reduce production waste.

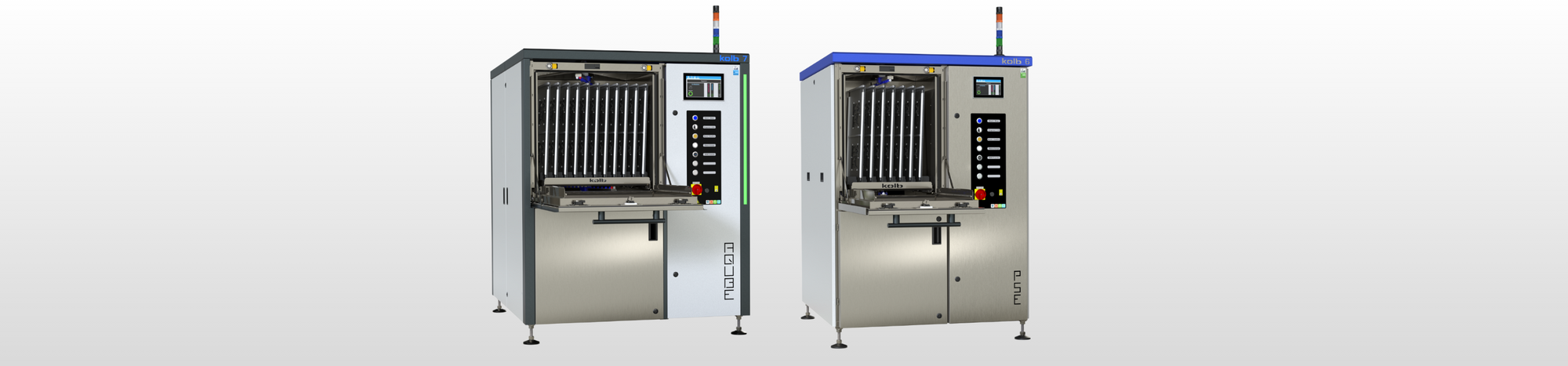

AQUBE® MH series
User-friendly all-rounders:
The high-end systems in the AQUBE® MH series offer short throughput times and efficient cleaning for a wide range of tool cleaning applications.
PSE MH series
Economical yet comprehensively equipped:
Our economy systems in the PSE MH series are also suitable for numerous cleaning tasks that arise in the manufacturing process, while remaining compact and energy-efficient.
AQUBE® MH series
AQUBE® MH9
Superlarge fully automatic "all-round" tools and parts cleaning system
Capacity: 28 carriers up to 750 x 950 mm (29.5" x 37.5") using the washing cart use or up to four washing drawersHorizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® MH9
AQUBE® MH7
(also available as AQUBE® MH7 TZD)
Fully automatic "all-round" tools and parts cleaning system
Capacity: 11 carriers up to 610 x 640 (24" x 25") or 640 x 640 mm (25" x 25") or up to three washing drawersHorizontal spray rotor system, VMH®-Turbo evaporative drying
PolyPower® technology (up to three times more pressure power and up to 30% less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® MH7
AQUBE® MH6
Fully automatic "all-round" tools and parts cleaning system
Capacity: 7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawersHorizontal PTFE-mounted rotor system with ASYNCHRON® spray rotors for thorough wetting (no blind spots)
Process chamber dimensions: W 540 ▪ D 590 ▪ H 710 mm (W 24.26" ▪ D 23.23" ▪ H 27.95")
more about AQUBE® MH6
PSE MH series
PSE MH7
Fully automatic "all-round" economy tools and parts cleaning system
Capacity: 11 carriers up to 610 x 640 mm (24“ x 25“), boxes / racks up to 640 x 640 (25" x 25") mm or up to three drawer baskets for small parts, filters etc.Horizontal spray rotor system, VMH®-Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE MH7
PSE MH6
Fully automatic economy cleaning system for solder frames, solder carriers, solder pallets, ESD boxes, PCB magazines, trays, machinery parts
Capacity: 7 carriers up to 610 x 490 mm (24" x 19") or up to three washing drawersHorizontal spray rotor system
Process chamber dimensions: W 540 • D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about PSE MH6
