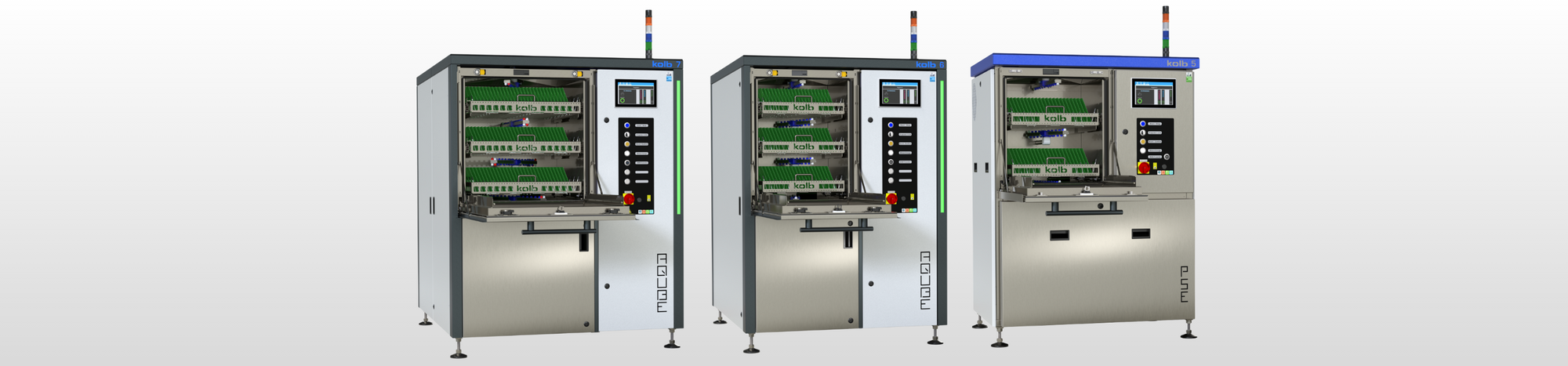

PCBA cleaning
Reliable assembly and circuit board cleaning is an important part of modern electronics manufacturing. Contaminants that are not removed can impair the function and reliability of products and lead to a loss of quality.
Our cleaning systems ensure thorough, efficient, and economical cleaning, from the basic model to our high-end systems.
AQUBE® X series
For the highest demands, fast and economical:
Our high-end AQUBE® X series systems with three parallel tanks and three separate circuits, as well as ClosedLoop water treatment, offer short cycle times and low operating costs, enabling unprecedentedly low total cost of ownership.
AQUBE® LH series
Extremly compact und economic:
The two-tanksystems in the AQUBE® LH series ensure reliable precision cleaning of assemblies and printed circuit boards. They are extremely compact and offer excellent value for money.
PSE LH series
Efficient and economic:
Our PSE systems are an economical and reliable solution for cleaning assemblies and printed circuit boards. The attractive price-performance ratio of the two-tank systems makes them the best choice for small-scale electronics production.
AQUBE® X series
AQUBE® XV9 SuperTask
Fully automatic high-end ultra-fine cleaning system for mass cleaning of PCBAs
Capacity: 96 eurocards in four clamping frames of 24 cardsVertical PTFE mounted rotor system with eight spray rotors for thorough wetting (no blind spots)
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® XV9 SuperTask
AQUBE® XV7 SuperTask
Special system for cleaning assemblies/printed circuit boards with complex architectures
Capacity: 30 eurocards in two clamping frames of 15 cards each in a washing cartCleans PCBAs, hybrids and misprints from flux residues, resin, copper, oxide and soldering support substances
Process chamber dimensions: W 700 ▪ H 710 ▪ D 720 mm (W 27.55"▪ H 27.95" ▪ D 228.34")
more about AQUBE® XV7 SuperTask
AQUBE® XH9
Fully automatic high-end ultra-fine cleaning system for mass cleaning of PCBAs
Capacity: up to 900 standard eurocards equals 14.4 m² (155 ft²) in up to four variable drawer baskets Horizontal up to eightfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® XH9
AQUBE® XH7
(also available as AQUBE® XH7 TZD)
Fully automatic high end ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 522 (8.4 m² / 90,4 ft²) eurocards in up to three variable drawer basketsPolyPower® Technology (up to three times more pressure power and up to 30 % less cycle time)
Horizontal up to sixfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® XH7

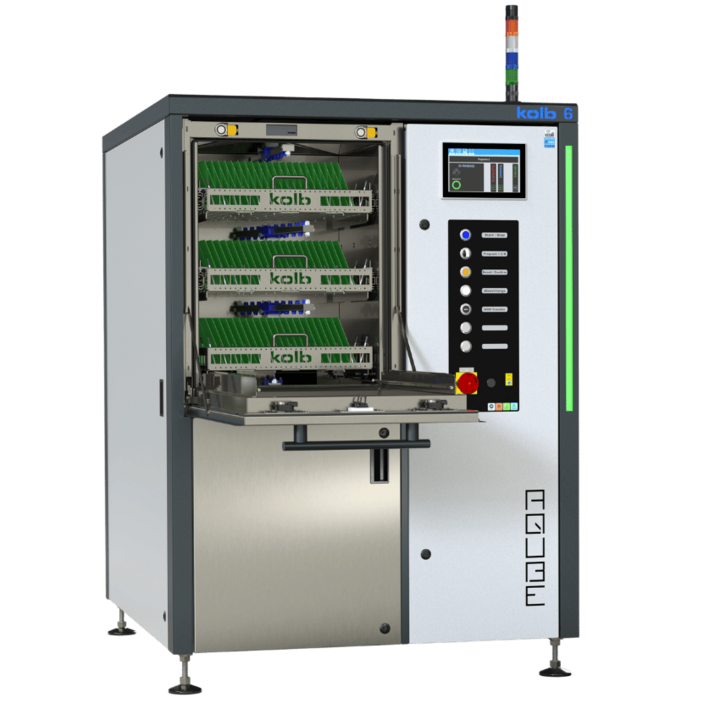

AQUBE® XH6
Fully automatic high-end ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 246 (3.9 m²/41,9 ft²) eurocardsCleans PCBAs, hybrids and misprints from flux residues, resin, copper, oxide and soldering support substances
Process chamber dimensions: W 540 ▪ H 710 ▪ D 590 mm (W 24.26"▪ H 27.95" ▪ D 23.23")
more about AQUBE® XH6
AQUBE® LH series
AQUBE® LH7
Fully automatic standard ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 522 (8.4 m²/90.4 ft²) standard eurocards in up to three variable drawer basketsHorizontal up to sixfold spray rotors, VMH® TurboDigital evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about AQUBE® LH7
AQUBE® LH6
Fully automatic ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 246 (3.9 m² /41.9 ft²) eurocards in up to three variable drawer basketsHorizontal PTFE-mounted rotor system with up to six ASYNCHRON® spray rotors for thorough wetting (no blind spots)
PolyPower® Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 540• D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about AQUBE® LH6
AQUBE® LH5
Fully automatic standard ultra-fine cleaning system for assemblies/PCBAs
Capacity: up to 176 (2.8 m² / 30 ft²) standard eurocards in up to two variable drawer basketsHorizontal up to fourfold spray rotors, VMH®-TurboDigital evaporative drying
PolyPower® Technology (up to three times more pressure power and up to 30 % less cycle time)
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")
more about AQUBE® LH5
PSE LH series
PSE LH7
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 520 (8.4 m²/90.4 ft²) eurocards in up to three variable drawer basketsHorizontal up to sixfold spray rotors, VMH® Turbo evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
more about PSE LH7

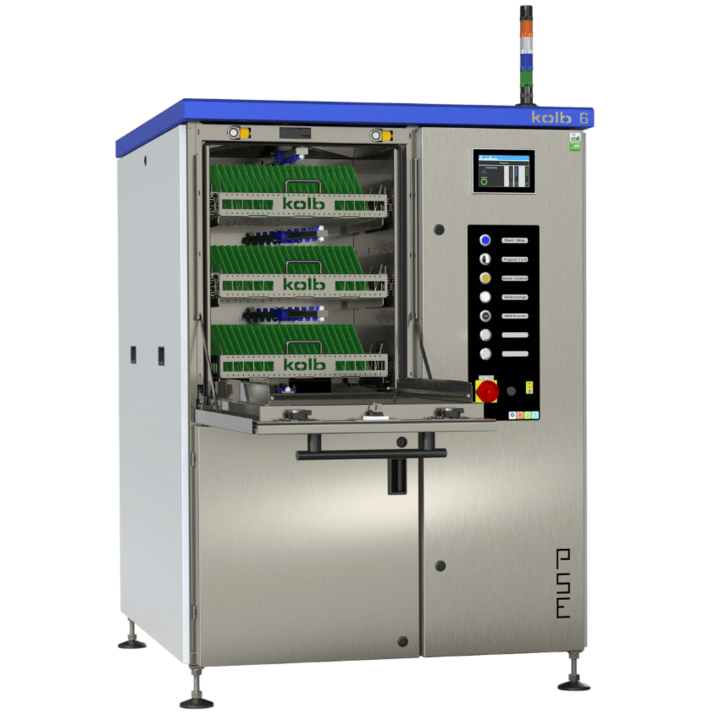

PSE LH6
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: 246 (3.9 m2 /41.9 ft2 ) eurocards in up to three variable drawer basketsHorizontal PTFE-mounted rotor system with up to six ASYNCHRON® spray rotors for thorough wetting (no blind spots)
Process chamber dimensions: W 540• D 590 • H 710 mm (W 24.26" • D 23.23" • H 27.95")
more about PSE LH6
PSE LH5
Fully automatic economy ultra-fine cleaning system for assemblies/printed circuit boards
Capacity: up to 176 equals 2.8m 2 (30 ft 2 ) eurocards in up to two variable drawer basketsHorizontal up to fourfold spray rotors, VMH®-Turbo evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm
more about PSE LH5
