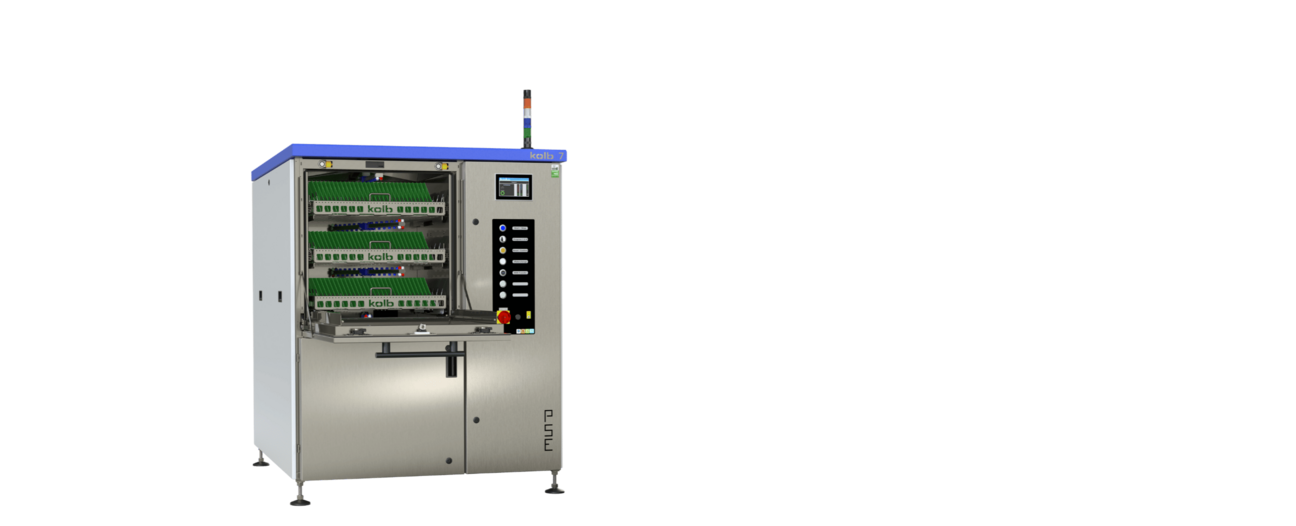

PSE LH7
Fully automatic XL economy cleaner for assembled PCBs

The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.

PSE LH7 is a fully automatic XL high volume economy system for fine cleaning of PCBs with a capacity of up to 540 (8.6 m² / 92.5 ft²) eurocards and a relative cleaning time of 12 seconds per card. Except kolb AQUBE® and PSE 9 types there are no PCB batch cleaning systems with a comparably large chamber size available worldwide.

PSE LH7 is a German engineered and manufactured machine primarily for the process safe fine cleaning of assembled PCBs, hybrids (HDIs, SiPs) and misprints from reflow flux residues, resin, copper, oxide and soldering support substances.

The two-tank, triple-circuit function configuration with ClosedLoop water reprocessing ensures short cycle times and makes this system a perfect choice for basic precision cleaning of assembled PCBs.


Highlights

  • Two-tank system with triple circuit function
  • Fully automatic 4step process: cleaning, (MediumWipe®), rinsing (tap water), DI-water rinsing, VMH®-Turbo evaporative drying
  • Process and service intervals PLC controlled
  • Event issuing and software control via high resolution 7" display with capacitive multi-touch
  • Horizontal PTFE mounted rotor system with up to six asynchronous spray rotors for thorough wetting (no blind spots)
  • Relative cleaning time per eurocard: 12 sec.
  • Automatic monitoring of ionic residues contamination and gauging of rinse water quality
  • Heater in cleaning tank (A) as a standard feature
  • Exchange for rinse water tank (B / C) and pump out unit as standard features
  • Maximum capacity on a very small footprint

ClosedLoop Technology
PowerSpray<sup>®</sup> Technology
VMH<sup>®</sup> Technology
PulseFlow<sup>®</sup> Technology
Traceability Application
QuickChange Application

Technical data

Technology base kolb PowerSpray®
Control system (Display size) PLC - Eaton (7“)
Standard capacity (per process cycle)

540 (8.6 m² / 92.5 ft²) eurocards

Process chamber dimensions W 710 mm • D 720 mm • H 700 mm
Max. number washing baskets 3
Washing basket size 620 mm x 620 mm
Circuits 2+ Cleaning, Rinsing tap water / Rinsing DI-water (combined)
Volume Tank A 55 l • Cleaning
Volume Tank B/C 35 l • Rinsing tap water / Rinsing DI-water (combined)
Max. cleaning temperature 80 °C (176 °F)
Filtration up to three stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent)
Drying System VMH® hot air
Drying temperature range approx. 70 - 90 °C (158 and 194 °F)
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 8 kW
Supply connection 1 (tap water) 1/2“
Supply connection 2 (DI water) 1/2“
Supply connection 3 (Compressed Air) 8 mm (87 - 116 psi - 100 l / min)
Empty Weight 480 kg (1,058 lbs)
Footprint 1200 mm x 1340 mm (47.24″ x 52.76″)

Certifications


Downloads

Product Information
PSE LH7
993 KB

back

Application overview

PCBs,Hybrids, Misprints
PCBs,
Hybrids, Misprints
most suitable
Stencils, ScreensMisprints
Stencils, Screens
Misprints
optional suitable
Solder Frames,Carriers & Palettes
Solder Frames,
Carriers & Palettes
optional suitable
ESD-boxes, ContainersPCB Magazines
ESD-boxes, Containers
PCB Magazines
optional suitable
Condensation Traps,Filters, Steel Sheets
Condensation Traps,
Filters, Steel Sheets
not suitable
Optional suitable applications can also be optimally realized with the appropriate options.
