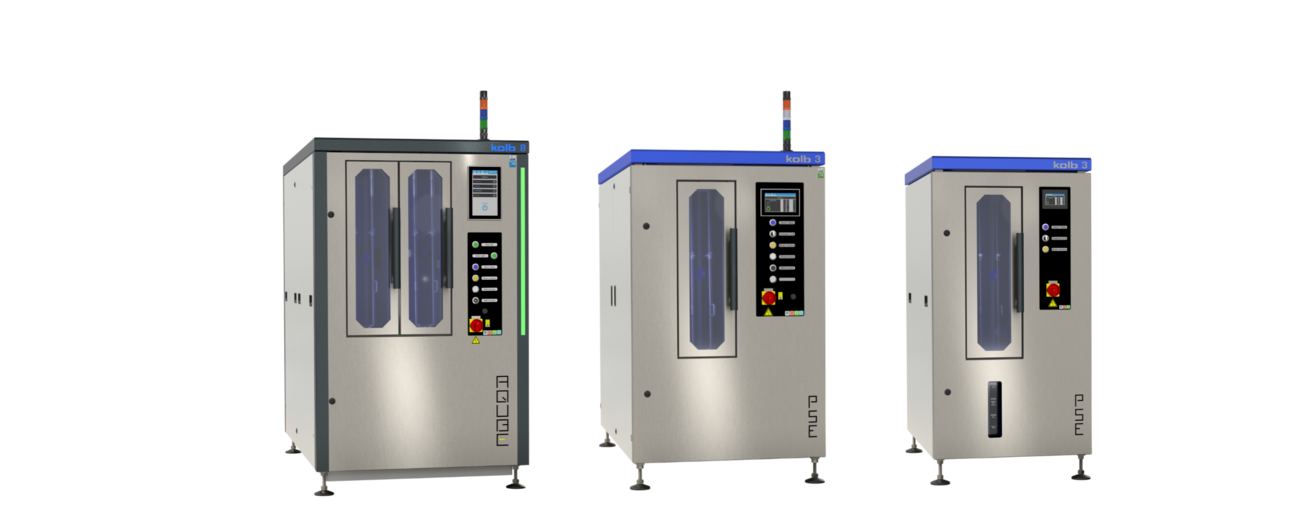

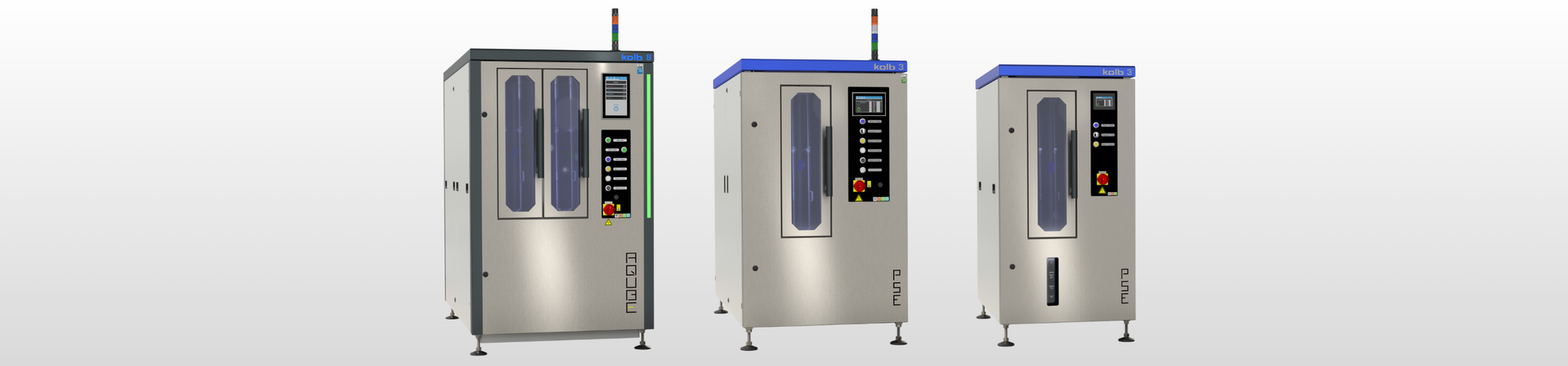

Stencils & Screens cleaning
Optimally cleaned stencils and screens are essential for reproducible quality and low failure rates.
Even the smallest apertures are reliably and gently cleaned of solder paste, adhesive, and flux residues with our cleaning systems.
AQUBE® MV series
Individual yet suitable for many requirements:
The cleaning systems in the MV series make maintenance cleaning efficient and user-friendly. With short cycle times and a wide range of chamber sizes.
PSE MV series
Thorough and fast:
Even in our basic version, the PSE series, our systems ensure thorough cleaning and offer comprehensive equipment at an excellent price/performance ratio—even with XL and XXL chamber sizes.
PSE 300 series
Compact, thorough, economical:
The cleaning systems in the PSE 300 series are ideal for smaller quantities in small and medium-sized businesses or for use in efficient large-scale production facilities where a cleaning system is installed for each printer.
AQUBE® MV series
AQUBE® MV9 QUAD
Fully automatic large-scale fine cleaning system for four screens/stencils
Capacity: 4 screens/stencils/carriers up to 800 x 940 (31.5“ x 37")Vertical eightfold spray rotors, CWA® supercharger compression drying
Relative cycle time: 7 minutes per stencil
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
more about AQUBE® MV9 QUAD
AQUBE® MV8 sTWIN
Twofold screen/stencil fine cleaning system with sequential utilization option
Capacity: 2 Stencils, screens, carriers up to 950 x 770 mm (37" x 30") in two separate process chambersFully automatic 4step process: cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about AQUBE® MV8 sTWIN
AQUBE® MV3 ONE
Compact fully automatic high-end fine cleaning system for stencils/screens
Capacity: Screen, stencil, carrier, washing frame (PCBAs, Misprints, Squeegees) up to 770 x 950 mm (31" x 37")Fully automatic 4-step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about AQUBE® MV3 ONE
PSE MV series
PSE MV8 TWIN
Economy fine cleaning system for two large stencils/screens in one cycle
Capacity: 2 Stencils, screens, carriers up to 800 x 900 mm (32" x 35")Fully automatic 4-step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans screens, stencils and PumpPrints from SMD paste, SMD adhesive, soldering support substances, oil & dust
more about PSE MV8 TWIN
PSE MV3 ONE XXL
Economy special system for the fine cleaning of super large stencils
Capacity: Stencil/screen up to 1,500 x 1,560 mm (59" x 61")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans screens and stencils from SMD paste, SMD adhesive, soldering support substances, oil & dust
more about PSE MV3 ONE XXL
PSE MV3 ONE XL
Compact fully automatic fine cleaning economy system for extra large stencils/screens
Capacity: Screen, stencil, carrier, washing frame up to 770 x 1,560 mm (30" x 61")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about PSE MV3 ONE XL
PSE MV3 ONE
Compact fully automatic fine cleaning economy system for stencils/screens
Capacity: Screen, stencil, carrier, washing frame up to 770 x 950 mm (30" x 37")Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease
more about PSE MV3 ONE
PSE 300 series
PSE 300 VS
Fully automatic, single chamber PowerSpray® system with 2-step process
Fully automatic single chamber system with PowerSpray® technologyCleans: screens, stencils, solder carriers and misprints
Usabel chamber dimension: W 350 • D 1,000 • H 920 mm
more about PSE 300 VS
PSE 300 VL
Compact fully automatic fine cleaning economy system for stencils/screens
Capacity: Screen, stencil, carrier/washing frame up to 780 x 950 mm (31" x 37")3-step process (cleaning/rinsing, MediumWipe®, CWA® drying)
Average process time: 13 min per stencil
more about PSE 300 VL
PSE 300 HD
Compact fully automatic fine cleaning economy system for stencils/screens
Capacity: Screen, stencil, carrier, washing frame up to 770 x 850 mm (30" x 33")2step process (cleaning/rinsing, drying) with HotSpeed warm air drying
Average process time: 30 min per stencil
more about PSE 300 HD
