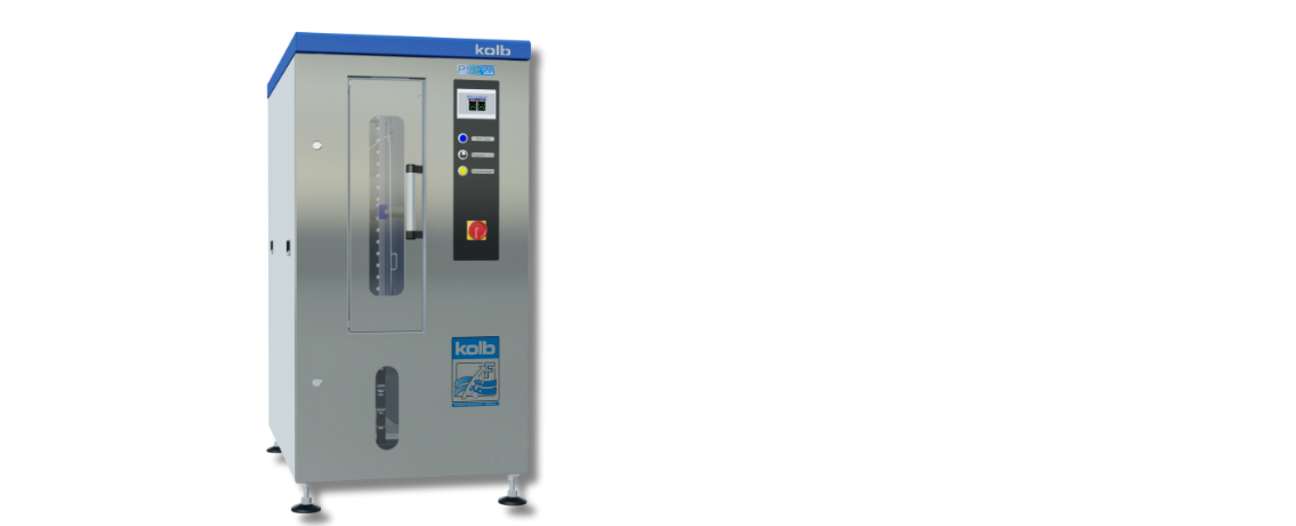

PSE 300 VS

PSE 300 VS
Cleans screens, stencils, solder carriers and misprints

The PSE 300 VS is an extremly compact first-rate performance PowerSpray® system for smaller quantities with very short cycle times due to an intelligent 2-step process with patented high performance CWA® supercharger compression drying. It can be operated without water/waste water connection.
It delivers best possible cleaning of screens, stencils, misprints and solder frames.

The cleaning system can be operated with all common electronics cleaning supplies (detergents/chemistry, etc.) which are approved by kolb.


Highlights

  • Mono-tank compact system with two tank function
  • Waterless/Independent, no water/waste water connection necessary
  • Comfortable push one button operation
  • Fully automatic 2-step process: cleaning/rinsing, drying with CWA® supercharger compression drying.
  • Vertical rotor system with two asynchronous spray rotors for thorough wetting (no blind spots)
  • Process and service intervals PLC controlled, event issuing and software control via 3.5" touch screen
  • Process sections made of electrolysis and high temperature resistant elements
  • Safe installation close to production line possible; no special protection required
  • Extremly compact – maximum capacity on a very small footprint

PowerSpray® Technology
ClosedLoop Technology
Water free Product
CWA® Technology

Technical data

Technology base kolb PowerSpray®
Control system (Display size) PLC - Eaton (3“)
Standard capacity (per process cycle)

Screen, stencil, carrier, washing frame up to 950 x 780mm (37.5" x 31")

Process chamber dimensions W 350 mm • D 980 mm • H 920 mm
Max. stencil, carrier, washing frame size H 950 mm x W 780 mm
Circuits 1+ Cleaning / Rinsing (communicating)
Volume Tank A 100 l • Cleaning / Rinsing (communicating)
Max. cleaning temperature Room temperature
Filtration 1. Full flow coarse filter < 2mm (0.8"), 2. Sediment filter inside the tank, 3. 20" fine filter (1 - 100 µm – process dependent)
Drying System CWA® supercharger
Drying temperature range Compressed warm air
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 3 kW
Empty Weight 330 kg (728 lbs)
Footprint 800 mm x 1200 mm (31.50″ x 47.24″)

Certifications


Downloads

Product Information
PSE 300 VS
920 KB

REACH, PFAS etc.

back

Application overview

PCBs,Hybrids, Misprints
PCBs,
Hybrids, Misprints
not suitable
Stencils, ScreensMisprints (bare boards)
Stencils, Screens
Misprints (bare boards)
most suitable
Solder Frames,Carriers & Palettes
Solder Frames,
Carriers & Palettes
optional suitable
ESD-boxes, ContainersPCB Magazines
ESD-boxes, Containers
PCB Magazines
not suitable
Condensation Traps,Filters, Steel Sheets
Condensation Traps,
Filters, Steel Sheets
not suitable
Optional suitable applications can also be optimally realized with the appropriate options.
