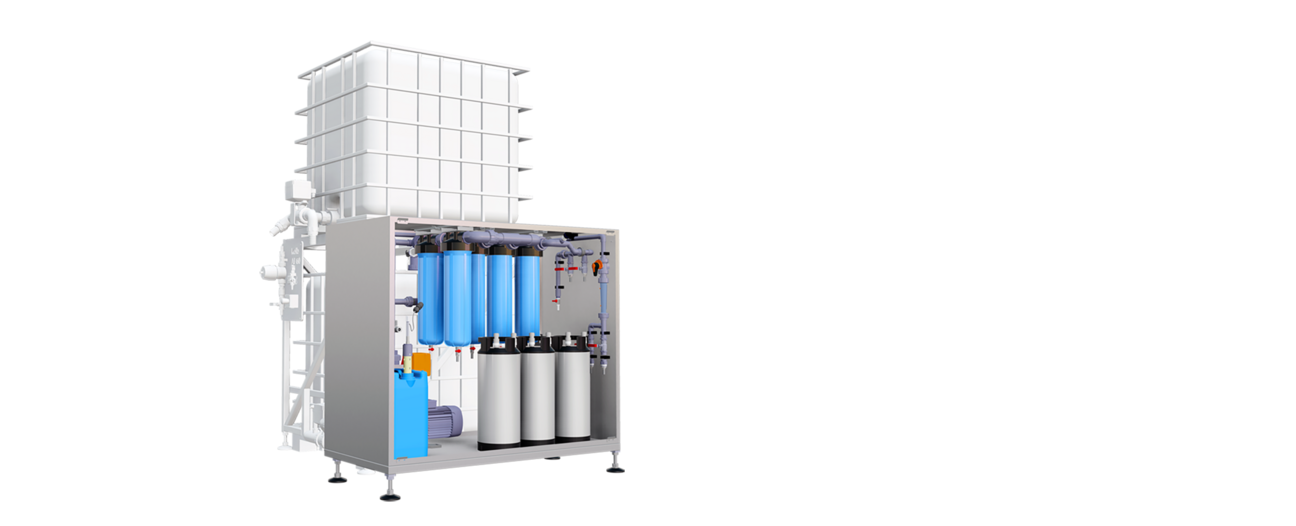

WPSD IUAF75
Wastewater disposer: Sewage water processing module for AF75 systems

WPSD IUAF75 is a wastewater treatment SYMBIO-unit for heavy metal contaminated rinsing water. Suitable as a system integrated option for kolb AF75 AirFlow^® cleaning systems with integrated ClosedLoop technology.

A closed rinsing circuit is integrated into all kolb cleaning systems. Usually these are systems for product (PCBs, DCBs, HDIs, etc.) or for tools cleaning (screens, stencils, solder frames / carriers, condensate filters, etc.).

The rinsing water is repeatedly used in the ClosedLoop process (depending on the cycle number and the task options) until its dirt entry respectively its μS conductance is so high that it is no longer usable and has to be disposed. The cheapest disposal is the indirect discharging into the public sewage network. This may only be done with regard to the legal limit values! The operator is responsible for compliance with the local regulations, possible authorizations by the authorities and proper operation.

The WPSD IUAF75 SYMBIO module uses the patented HME process developed by kolb for metal precipitation from alkaline rinsing waters with high dissolved or undissolved heavy metal contents like lead, tin, silver and copper. The rinse water is thus treated in such a way that it can be indirectly discharged into a public sewage network.

The module can be installed freely in the room with the appropriate piping. The required additional floor space including IBC is 1,850 x 1,500 mm.
