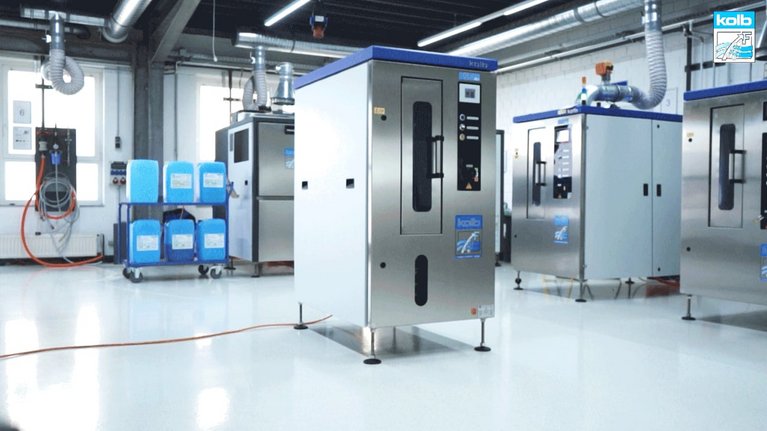

PSE 300 HD
Cleans screens, stencils, squeegees and spatulas
The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.
The PSE 300 HD is an extremely compact first-rate performance PowerSpray system designed and manufactured in Germany for smaller quantities with an intelligent 2-step process with HotSpeed warm air drying.
The PSE 300 HD delivers best possible cleaning of screens, stencils, misprints and solder frames, today a prerequisite for reproducible quality in production, the reduction of expensive production stand-stills and as well for high customer satisfaction.
Ideally suited as a cost-effective system especially for the easy, quick and thorough cleaning of coating residues from carriers protected with the innovative kolb CarrierSeal® sealing.
Schedule a Consultation
Highlights
- Compact mono-tank system with two tank function and communicating detergent
- Average process time: 30 min per stencil
- Waterless/independent, no water/waste water connection necessary
- Fully automatic 2-step process: cleaning/rinsing, drying with HotSpeed warm air
- Vertical rotor system with two ASYNCHRO® spray rotors for thorough wetting (no blind spots)
- Optimally suited (with option DeSealing) for the cleaning of coating carriers sealed with kolb CarrierSeal®
- Process and service intervals PLC controlled with event issuing and software control via 3,5" touch screen
- Process sections made of electrolysis and high temperature resistant elements
- Safe installation close to the production line possible; no special protection required
- Extremely compact - very small footprint
kolb Technologies & Benefits
Technical Data (Excerpt) | |
|---|---|
| Technology base | kolb PowerSpray |
| Standard capacity (per process cycle) | Screen, stencil, carrier, washing frame up to 770 x 850 mm (30" x 33") |
| Process chamber dimensions | W 350 mm • D 920 mm • H 920 mm |
| Clamping space for PCBA, Misprints, etc. | H 730 mm x W 525 mm |
| Max. stencil, carrier, washing frame size | H 770 mm x W 850 mm |
| Circuits | 2: Cleaning, Rinsing tap water / Rinsing DI-water (combined) |
| Volume Tank A (Cleaning, communicating) | 100 L |
| Max. cleaning temperature | 50 °C (122 °F) |
| Filtration | 1. Full flow coarse filter < 2 mm (0.08"),2. 20“ fine filter (1 - 100 µm - process dependent) |
| Drying System | HotSpeed warm air |
| Drying temperature range | approx. 40 - 45 °C (104 and 113 °F) |
| Footprint | 800 mm x 1200 mm (31.50″ x 47.24″) |
