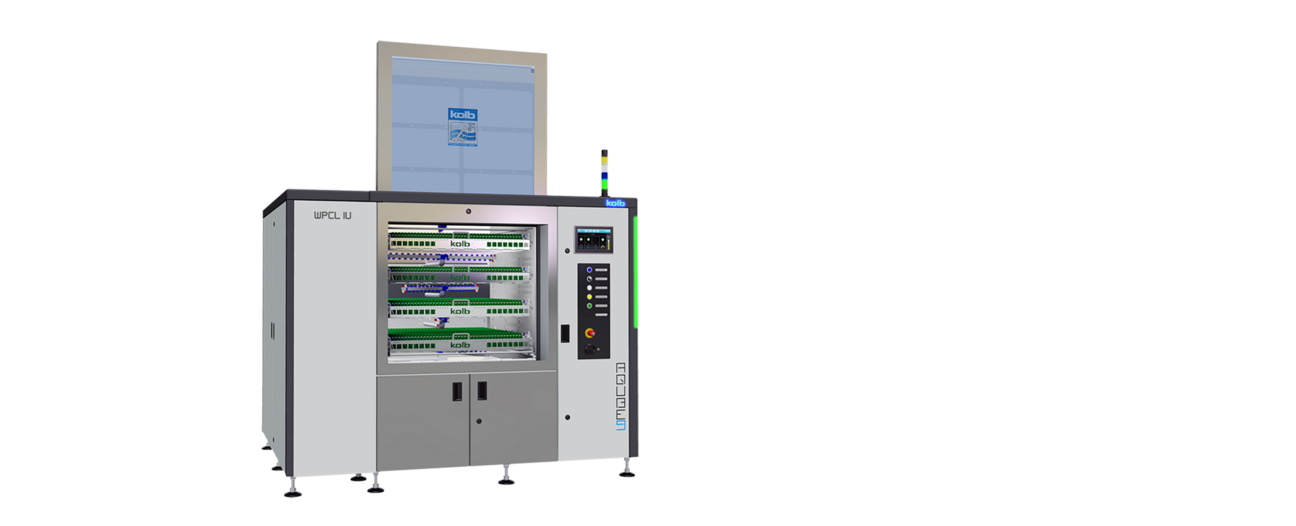

AQUBE® XH9
超大高端系统专用于清洗集成PCBs, DCBs, hybrids等

新版 AQUBE® 系统将成为下一个新生清洗系统-甚至更高效,更精简,简易操控及保养,提前装配有延长水的管控时间,专为就绪的数字工厂(SFr 证明书)。

kolb AQUBE XH9® 是一款全自动XXL大容量PCB 清洗系统,拥有世界上最大的批量生产处理舱,每次可放置 (860 / 19m² 欧式板于一次清洁循环中,相应的相对清洁时间为每片6.6秒)远超任意一款普通系统机型。

AQUBE XH9® 由德国工程设计研究制造为其核心,针对附着于集成PCBS与混合(HDIS,SIPS)上的污染物质,比如:助焊剂,松香,松脂,铜渍,氧化物残留与抗活性焊锡助溶物质。 三槽三环并联结构,内部闭式水处理再利用使循环时间以及运行成本减少,有助于领导者与企业主在成本商讨中无争。

AQUBE XH9® 系统,可提供大型工厂自动装卸连接在线程控装备。


Highlights

  • Three tank system with three separate circuits
  • Smart Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step (optional up to 5step) process: cleaning, (MediumWipe®), rinsing (tap water), DI-water rinsing, VMH®-TurboDigital hot air evaporative drying
  • 6.5 seconds relative cycle time for the cleaning, rinsing and drying of one eurocard
  • Horizontal PTFE mounted rotor system with up to sic asynchronous spray rotors for thorough wetting (no blind spots)
  • Heater cleaning tank A, automatic water change for the rinsing circuit, DI water system, DI-bypass processing, water measuring unit (ion contamination measurement), ion exchanger and fine filter systems for all three circuits as standard
  • Processes and service intervals PLC controlled. Event issuing and software control via touch screen
  • EDGELESS Design and VARIccess® service access: maximum capacity, easy maintenance on a very small footprint
  • Suitable for high temperature cleaning and rinsing up to 80 °C (176 °F)

PowerSpray<sup>®</sup> 科技
PolyPower<sup>®</sup> 科技
VMH<sup>®</sup> 科技
ClosedLoop 科技
PulseFlow<sup>®</sup> 科技
Traceability 应用
DNAccess<sup>®</sup>
QuickChange 应用

技术数据

Technology base kolb PowerSpray®
Control system (Display size) PLC - Eaton (10“)
Standard capacity (per process cycle)

830 (19 m²) eurocards

Process chamber dimensions W 900 mm • D 955 mm • H 970 mm
Max. number washing baskets 4
Washing basket size 890 mm x 890 mm
Circuits 3 Cleaning, Rinsing tap water, Rinsing DI-water
Volume Tank A 100 l • Cleaning
Volume Tank B 125 l • Rinsing tap water
Volume Tank C 100 l • Rinsing DI-water
Max. cleaning temperature 80 °C (176 °F)
Filtration up to four stages - 1. Full flow coarse filter < 2 mm, 2. Sediment filter inside the tank, 3. 20“ fine filter (1 - 100µm - process dependent), 4. HMA filter
Drying System VMH® 数字控制增压热风
Drying temperature range approx. 45 - 120 °C (113 and 248 °F)
Power supply 400 V AC, 32 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 18 kW
Supply connection 1 (tap water) 1“
Supply connection 2 (DI water) 1“
Supply connection 3 (Compressed Air) 8 mm (87 - 116 psi - 100 l / min)
Empty Weight 922 kg (2,033 lbs)
Footprint 1700 mm x 1850 mm (66.93″ x 72.83″)

认证证书


下载

Product Information
AQUBE® XH9
1 MB

返回

应用概述

组装好的印刷电路板,电力电子, 误印 (组装的)
组装好的印刷电路板,
电力电子, 误印 (组装的)
最佳适用性
打印机屏幕, SMD 模板印刷错误的多氯联苯
打印机屏幕, SMD 模板
印刷错误的多氯联苯
可选适用
焊架, 焊具,焊锡面罩
焊架, 焊具,
焊锡面罩
可选适用
防静电箱, 托盘, 弹匣
防静电箱, 托盘, 弹匣
可选适用
冷凝水过滤器,机械零件, 钢板
冷凝水过滤器,
机械零件, 钢板
不适合
可选的适用性可以通过相应的选项完美实现。
