Cleaning of PumpPrint stencils

PumpPrint cleaning

As a manufacturer and system supplier kolb provides for PumpPrint as well as for stencil and screen cleaning the complete process from a single source: including machinery, accessories, detergents and specially applied software controlled, fully automated electronic processes.

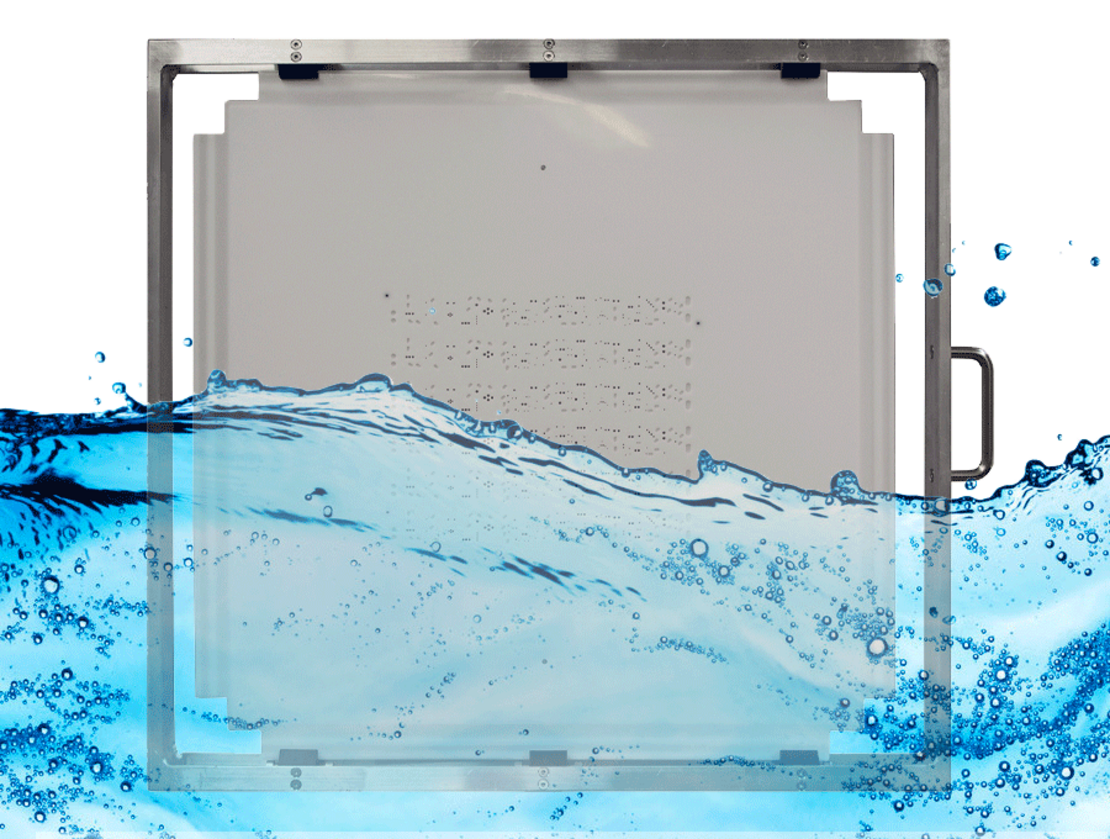

Optimal cleaning of PumpPrint stencils made of solventresistant plastic is a must in electronics industry to assure reproducible quality and low production rejects. Residues and contamination from SMD-adhesives and SMD-paste on stencils and screens particularly in the apertures lead to printing mistakes in PCB assembly manufacturing or to malfunctions of the final product.

With this particular process also misprints (misprinted bare boards) as well as solder frames and solder carriers can be cleaned from solder pastes, conductive adhesives, SMD adhesives, flux, oil, dust or grease.

A couple of decisive questions have to be answered when designing a process consisting of machine, detergent and reproducible process control:

  • Can the process effectively and material conserving clean fine and ultra fine-pitch apertures?
  • What exact contaminations need to be cleaned now and in a foreseeable future?
  • Can the process clean dry/older and fresh contaminations?
  • Is the whole process environmentally safe and compliant?
  • What is the total cost of ownership (investment, operating cost, maintenace time / downtime)?

Suitable cleaning systems


PSE 300 2HD
Fully automatic two-tank two circuit stencil cleaning system

Capacity: Capacity: Screen, stencil, carrier, washing frame up to 950 x 780 mm (37.5" x 31")
Fully automatic 3step process (cleaning, rinsing, drying with HotSpeed warm air)
Cycle time: < 30 min, depending on contamination and detergent

more about PSE 300 2HD

PSE 300 2VL
Fully automatic two-tank two-circuit stencil cleaning system

Capacity: Screen, stencil, carrier, washing frame up to 950 x 780 mm (37.5" x 31")
Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease

more about PSE 300 2VL

PSE 300 HD
Fully automatic economy basic screen and stencil cleaning system

Capacity: Screen, stencil, carrier, washing frame up to 950 x 780 mm (37.5 "x 31")
2step process (cleaning / rinsing, drying) with HotSpeed warm air drying
Cycle time: < 30 min, depending on contamination and detergent

more about PSE 300 HD

PSE 300 VL-RS
Fully automatic high speed screen and stencil economy cleaning system

Capacity: Screen, stencil, carrier / washing frame up to 950 x 780 mm (37.5" x 31")
3step process (cleaning / rinsing, MediumWipe®, CWA® drying)
Cycle time: < 10 min, depending on contamination and detergent

more about PSE 300 VL-RS

PSE 300 VS
Fully automatic economy compact screen cleaning system

Capacity: Screen, stencil, carrier, washing frame up to 950 x 780 mm (37.5" x 31")
2step process (cleaning / rinsing, drying) with patented supercharger compression drying
Cycle time: < 18 min, depending on contamination and detergent

more about PSE 300 VS

PSE MV8 TWIN
Cleaning system with double capacity for large stencils

Capacity: 2 Stencils, screens, carriers up to 900 x 800 mm (35" x 32")
Fully automatic 4step process, cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease

more about PSE MV8 TWIN

AQUBE® MV8 sTWIN
Parallel or sequential cleaning of two large stencils

Capacity: 2 Stencils, screens, carriers up to 900 x 800 mm (35" x 32") in two separate process chambers
Fully automatic 4step process: cleaning, MediumWipe®, rinsing and CWA® supercharger drying
Cleans stencils, screens, PumpPrint stencils, misprints from SMD adhesive, SMD paste, flux, oil, dust, grease

more about AQUBE® MV8 sTWIN

AQUBE® MV9 QUAD
Fully automatic 4-fold stencil cleaning system

Capacity: 4 screens / stencils / carriers up to 940 x 800 x 50 mm (37" x 31.5“ x 2")
Vertical eightfold spray rotors, CWA® supercharger compression drying
Relative cycle time: 4 minutes per stencil
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")

more about AQUBE® MV9 QUAD

Suitable detergents


MultiEx® 3D series

MultiEx® 3D series detergents are aqueous three-dimensional cleaners (1. colophonium removal, deoxydizing, 3. passivating) for use in kolb systems with PowerSpray® technology and in all common spray-in-air cleaning systems.

Most suitable for: assembled PCBs, DCBs, ceramic substrates, also screens, stencils, PumpPrints and misprints.

more about MultiEx® 3D series

MultiEx® B11

MultiEx® B11 is an aqueous alkaline broadband cleaning detergent for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems.

Most suitable for stencils, misprints, solder carriers, PCB magazines, ESD boxes

more about MultiEx® B11

MultiEx® GC

MultiEx® GC (Glue Cleaner) is a broadband cleaning detergent for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems.

Most suitable for stencils, screens

more about MultiEx® GC

MultiEx® N7-TS

MultiEx® N7-TS is an aqueous neutral cleaning detergent for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems as well as for use in screen printers for internal stencil underside cleaning. Also most suitable as rinsing detergent.

Most suitable for stencils, stencil flipside / underside cleaning, misprints

more about MultiEx® N7-TS

MultiEx® N8

MultiEx® N8 is an aqueous pH-neutral broadband cleaning concentrate for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems.

Most suitable for stencils, screens, stainless steel

more about MultiEx® N8

MultiEx® SC

MultiEx® SC (SC = Screen Cleaner) is a anhydrous special cleaner for use in kolb systems with PowerSpray® technology and common spray-in-air cleaning systems.

Most suitable for photo technical screens, PumpPrint stencils
Certified for M-TeCK screens

more about MultiEx® SC

MultiEx® VR series

MultiEx® VR series offers aqueous alkaline broadband detergents, ideal for ultra-fine cleaning of high-end electronic components, for use in kolb systems with PowerSpray® technology and all common spray-in-air cleaning systems.

Most suitable for: Assembled PCBs, ceramic substrates, misprints, stencils, solder carriers, solder pallets, ESD boxes, PCB magazines

more about MultiEx® VR series
